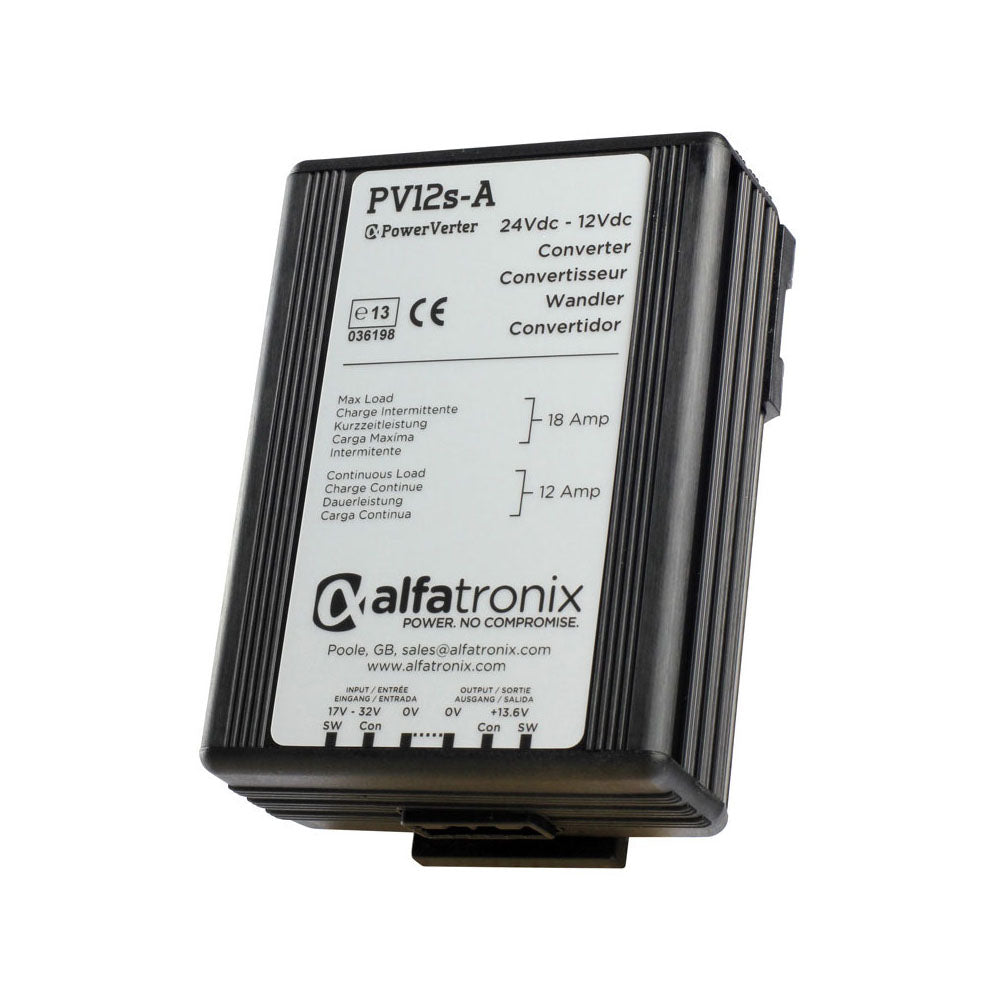

Alfatronix Powerverter Dual Output 24V - 12V Voltage Converter - 12A

• Cont / Int Power: 12A / 18A non-isolated
• Input Voltage : 17 - 32Vdc
• Output Voltage: 13.6Vdc +/- 15%
• Dimensions: 126 x 87 x 50mm
• Weight: 455g

The Alfatronix dual output converter mimics the battery and ignition function by providing two outputs either of which can provide full power. One output is available whenever the 24V battery is connected. The other output is switched by the 24V ignition switch. The Dual Output Range can be used for any application where a dual output is required or where a switched and permanent or memory connection must be retained.
