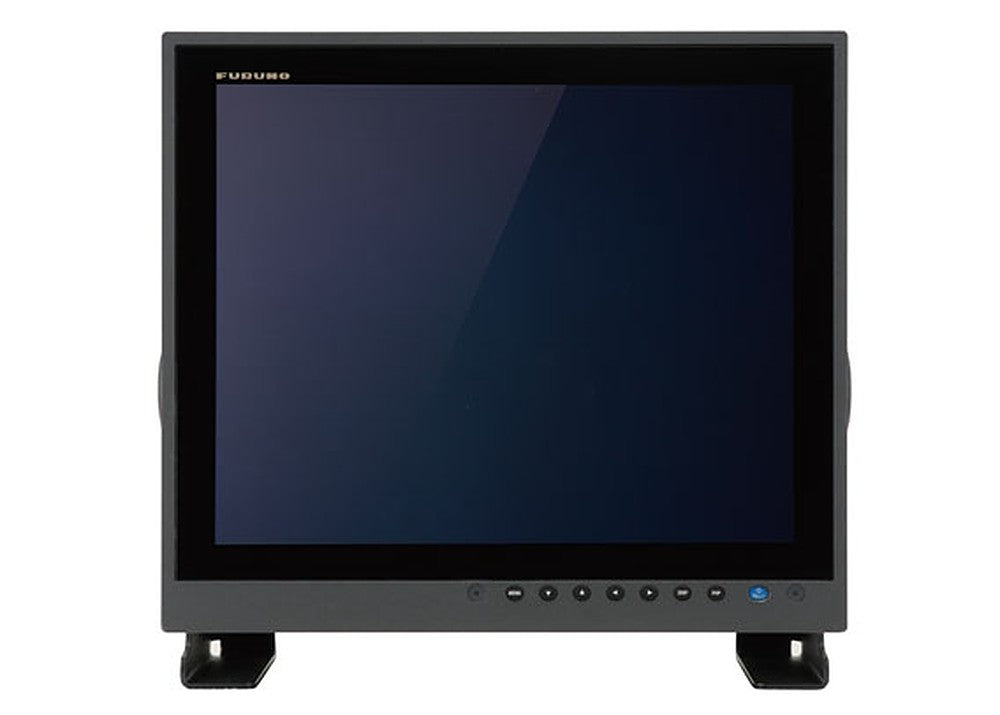

Furuno MU-190HD Marine Display Monitor - 19"

• Display unit: 19" COLOR LCD
• Screen Resolution: 1280 x 1024 (SXGA) (*Resolution from VGA to SXGA are accepted
• Contrast: 900:1
• Viewing Angle: (Vertical) up/down 80°or more (Horizontal) left/right: 80°or more
• Screen Brightness: 1000 cd/㎡
• Interface: Analog RGB (D-SUB/15 pins): 1 port DVI-D: 2 ports Composite Video (NTSC/PAL): 3 ports
• Temperature: −15 ℃ to +55 ℃
• Waterproofing: IP56 (front panel) IP22 (rear panel)
• Power Supply: 12-24 VDC 8.4 - 3.9 A
• Weight (Flush mount)：8.2 kg

The Furuno MU-Display series is a muliti-purpose marine LCD that features the unmatched quality and reliability that can be depended on.

The MU-Display series employs bright colour TFT LCDs with a special AR (Anti-reflective) glass filter to cut down on annoying glare. With its bright colours excellent contrast and wide viewing angles the monitor is perfect for any tropical sunlight or low light conditions. These units feature a wide range of interface options that include: RGB analog DVI (Digital Video Interface) and composite video inputs.

These displays may be used as either the main or remote display for a variety of marine equipment such as BlackBox Radar Sounder Sonar and NavNet Series. They can also be used for displaying images from security cameras DVD player computers etc.

Features

Picture In Picture (PIP): Composite video (NTSC/PAL) input is available for displaying video images from onboard TV/DVD Player.

Low Power Consumption: Utilizing the latest LED backlight the MU-Display series delivers sharp high quality images with bright colours and all at very low power consumption

Waterproof: The MU-190HD has a waterpoof display and is built to stand up to tough marine conditions when mounted at fly bridge consoles. The display can be rinsed in water for easy worry-free cleaning.

Slim Lightweight and Compact: The MU-Display series is slim in depth light weight and is so compact that it fits riht into virtually any console. Its space-saving design makes optimum use of your dashboard.

Flush Mounting: For space-saving installation and additional security flush mount installation is available for all the MU-Display series. The display unit can be fixed from either front or rear with a flush mount kit.
