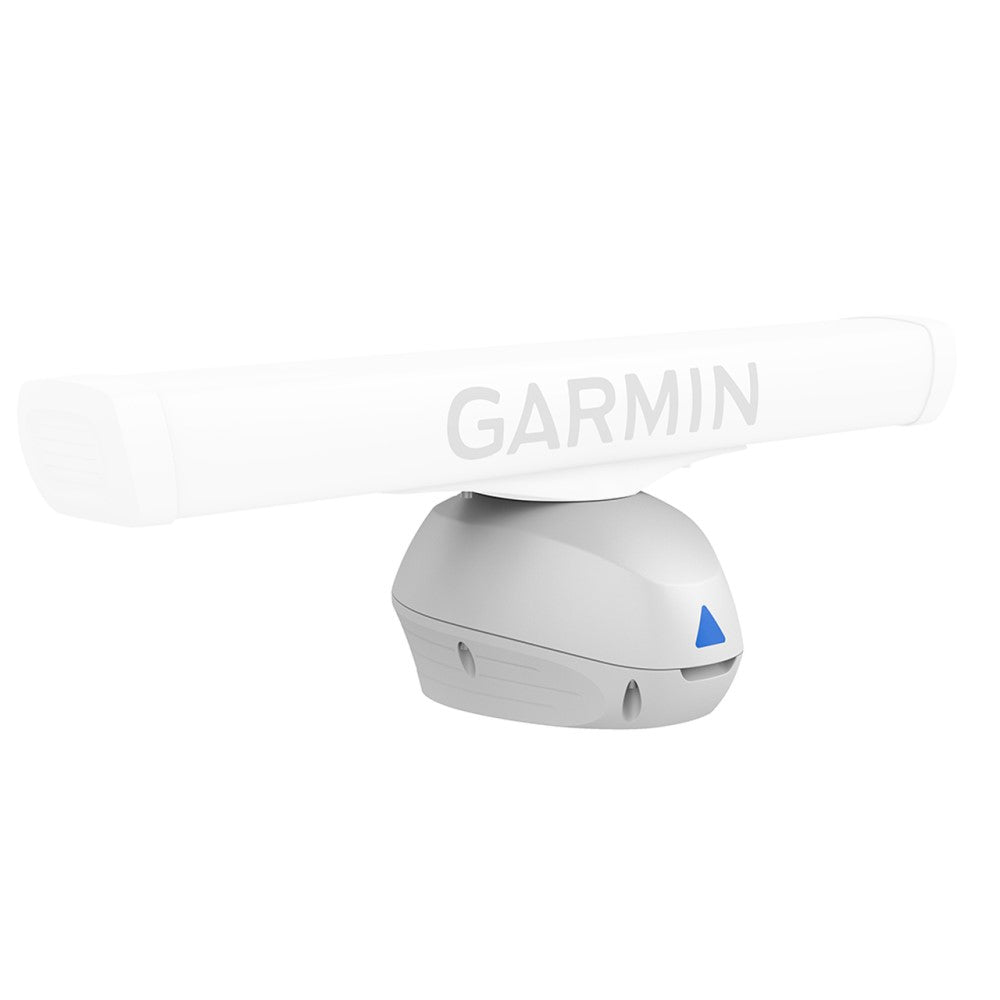

Replacement 120W Pedestal for GMR Fantom Series Open Array Radars
Compatible with GMR Fantom 4' & 6' Antenna.
Physical Dimensions: 42.1 x 36.4 x 27.1 cm
Weight: 15.7 kg
Water Rating: IPX6
Peak Transmit Power: 120 W
Max Wind Load: 80kt
Rotation Speed (RPM): 24 and 48 rpm
Maximum Range: 96 nm
Minimum Range: 6 metres
GMR Fantom Open-array radars are solid-state radars that offer 50W 120W or 250W of power. They use MotionScope technology to detect and highlight moving targets in different colours which helps avoid potential collisions find flocks of birds and track weather. The Pulse Compression technology provides high-resolution imaging and maximises energy to help detect and identify targets.
