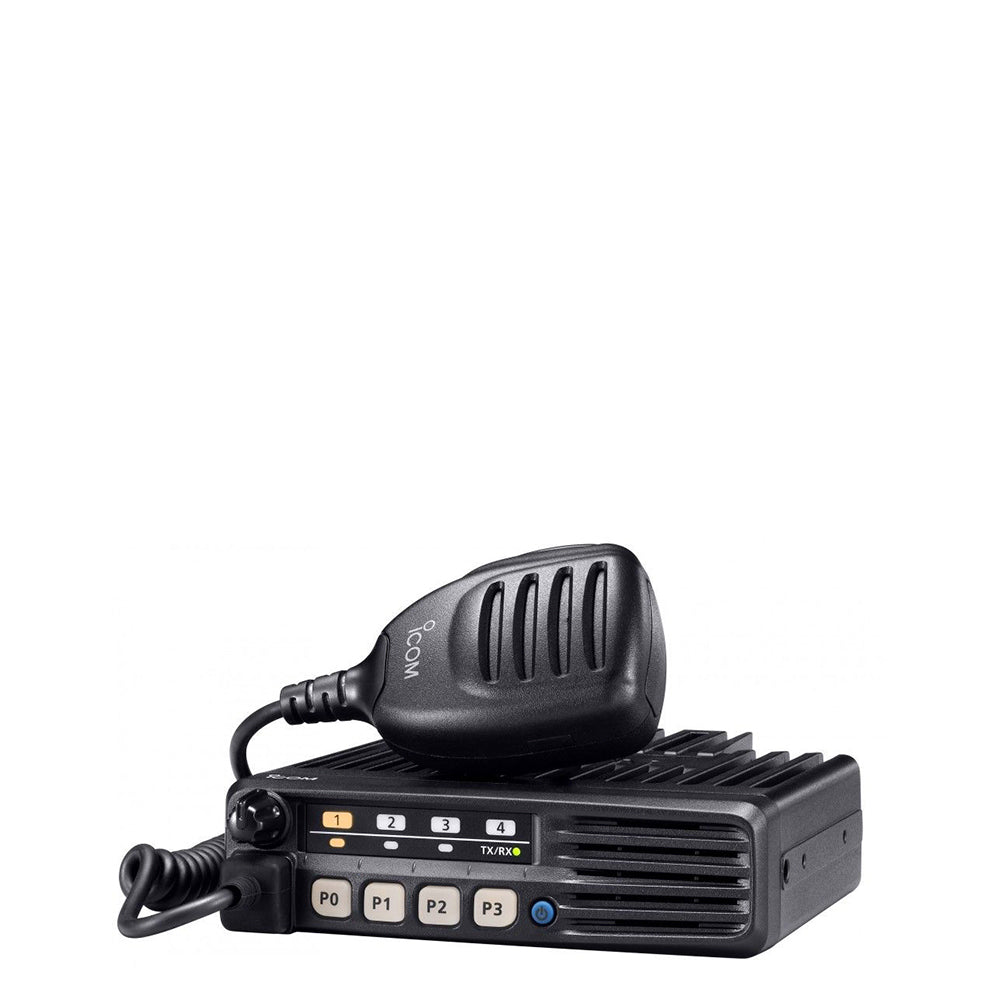

Icom F6012 PMR Mobile UHF 2 Way Radio

The IC-F6012 series has built-in 5-Tone CTCSS and DTCS signalling capabilities for group communication. The IC-F6012 series can decode up eight 5-tone codes on a channel. The following actions are programmable to respond to each tone.

• Beep sound
• LED lighting
• Answer back call
• Auto TX
• Stun kill revive
• Scanning
• External output*

* External device connection such as a horn honk buzzer etc is required.

Internal option units available

The IC-F6012 series has an internal 40-pin socket for an optional unit so that you can use the optional UT-109R or UT-110R voice scrambler units The UT-108R DTMF decode unit is also available.

4W (typical) front mounted loud speaker

The IC-F6012 series has a 4W (typical) front mounted speaker providing the operator with clear audio during operation.

Easy to use

The IC-F6012 series has 4 programmable buttons. 8 memory channels can be easily selected with the programmable buttons. Backlit buttons make night time operation simple.

Enhanced Scan features

• Priority scan allows you to monitor one or two priority channels while scanning other non-priority channels.
• The Tx channel and talk back functions allow you to make a quick response while scanning.
• Nuisance delete ... User can temporary skip a busy channel from the scanning list.
• Monitor key action ... User can stop a scan when pushing the monitor button.

External memory channel control with optional ACC cable

The optional ACC cable allows you to connect various external devices like a PC external speaker or even vehicle horn. It can provide ignition sense function external memory channel control as well as the external PTT audio output and modulated signal input. The OPC-1939 is a D-SUB 15-pin type and the OPC-2078 is a D-SUB 25-pin type.
