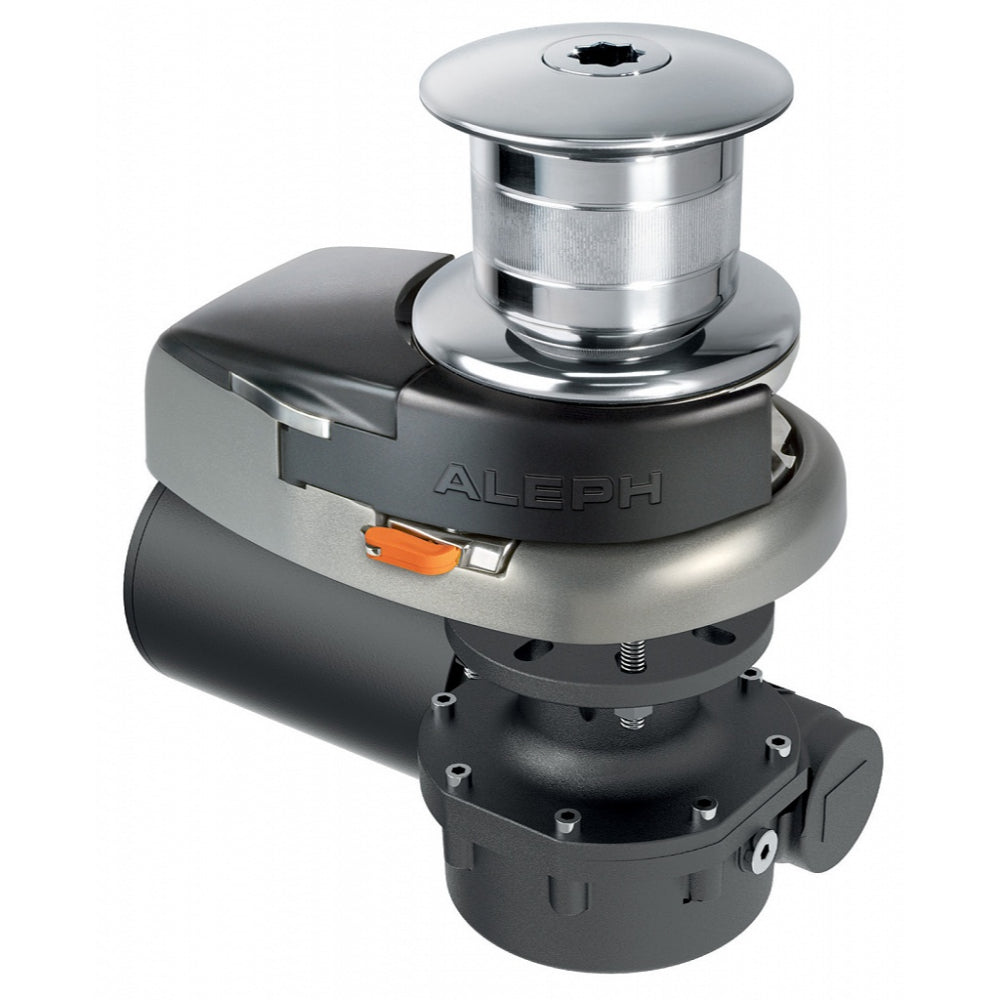

Quick Aleph AL3 1524D Windlass - 10mm (3/8") 1 500W 24V With Drum
Quick Aleph AL3 1524D Windlass - 10mm (3/8") 1 500W 24V With Drum
Couldn't load pickup availability
- Vertical windlasses
- Base in anodized aluminium in hard oxide
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP67 watertight motor
The AL3 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of anodized aluminum in hard oxide which is a durable element when dealing with harsh marine environments. It comes in different variations such as with or without the drum capstan for rope retrieval as well as various gypsy sizes for rope and chain retrieval.
Equipped with an emergency manual lift system you can easily retrieve your anchor during instances when you may lose battery power on your boat. Additional features include an IP67 watertight motor anodized aluminum gearbox and an easy to open inspection lid. The package is sold complete with the windlass solenoid unit clutch handle and mounting hardware.
Gypsy Options
| Gypsy | 8mm (5/16") | 10mm (3/8") | ||||
|---|---|---|---|---|---|---|
| Chain | 8mm DIN 766 | 8mm ISO | 5/16" G4 | 5/16" BBB | 10mm ISO | 3/8" G4 |
| Rope | 12.7mm (1/2") - 14.2mm (9/16") - 15.8mm (5/8") | 15.8mm (5/8") | ||||
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.
Specifications
| Standard Version | Aleph 700/700D | Aleph 1000/1000D | Aleph 1500/1500D | |||
|---|---|---|---|---|---|---|
| Motor Power | 700W | 1000W | 1500W | |||
| Motor Supply Voltage | 12V | 24V | 12V | 24V | 12V | 24V |
| Maximum Pull | 850Kg (1874 lb) | 1000Kg 2204 lb | 1100Kg 2425 lb | |||
| Maximum working load | 250Kg (551 lb) | 300Kg (661 lb) | 370Kg 816 lb | 450Kg 992 lb | 470Kg 1037 lb | 540Kg 1191 lb |
| Working load | 80Kg (176 lb) | 100Kg (220 lb) | 120Kg 264 lb | 150Kg 331 lb | 160Kg 353 lb | 180Kg 397 lb |
| Current absorption @ working load | 90 A | 55 A | 140 A | 80 A | 155 A | 85 A |
| Maximum chain speed | 27.4m/min (75 ft/min) | 26.4m/min (83 ft/min) | 39.6m/min 130 ft/min | 40.9m/min 135 ft/min | 29.2m/min 96 ft/min | 29.7m/min 98 ft/min |
| Maximum chain speed @ working load | 14.4m/min (38 ft/min) | 14.8m/min (47 ft/min) | 20.4m/min 67 ft/min | 21.4m/min 71 ft/min | 16.3m/min 54 ft/min | 19m/min 63 ft/min |
| Weight without drum | 17.4Kg (37 lb) | 18.6Kg 39 lb | 20.8Kg 46 lb | |||
| Weight with drum | 18.5Kg (40 lb) | 19.7Kg 42 lb | 22.2Kg 50 lb | |||
