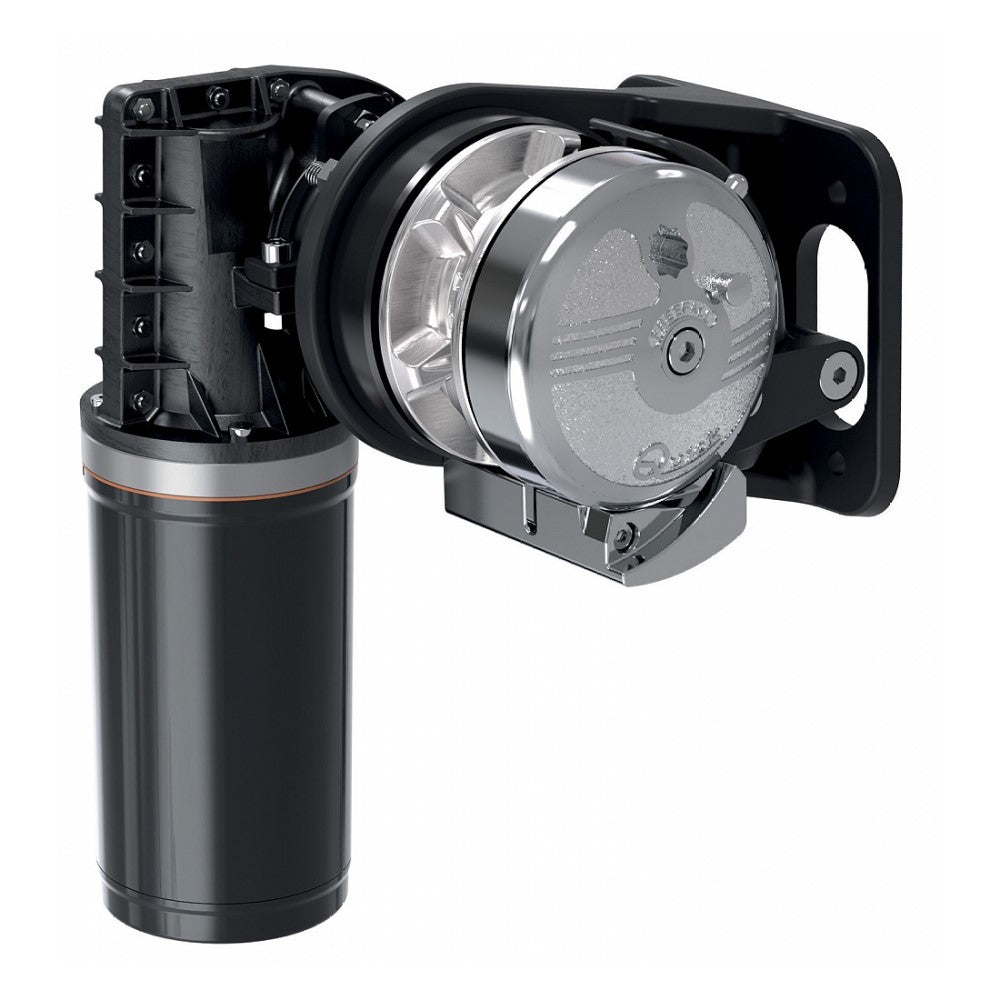

Quick Balder BL2 P 612 X Windlass - 6mm 600W 12V X-Axis No Free Fall

£1,382.27 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Horizontal windlasses
Maximum flexibility of installation
AISI 316 Stainless steel and chromed bronze
Integrated sensor and magnet for chain counter
Rope and chain on a single gypsy
Automatic system of anchor-rode free-fall
Supplied with chain guide device
Supplied with pressure lever
Technopolymer gearbox

The Balder BL2 P is a Horzontal windlass that is available in Left or right axis gypsy orientations with a wide range of supported chain sizes. Some models feature a Free-Fall device to release the clutch and provide a quicker fall of the chain.

Free-Fall Device

Free-fall device enables to release the gypsy clutch and a quicker fall of the chain. Some models have automatic Free-Fall; in this case the clutch is released by means of an electric control. Genius FF models and Balder series are equipped with automatic Free- Fall system.

Gypsy Options

Gypsy	6mm		7mm (1/4")				8mm		5/16"
Chain	6mm ISO	6mm DIN 766	7mm DIN 766	7mm ISO	1/4" G4	1/4" BBB	8mm DIN 766	8mm ISO	5/16" G4
Rope	12.7mm (1/2")		12.7mm (1/2")		12.7mm (1/2")		12.7mm (1/2")		12.7mm (1/2")

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.

Specifications

Standard Version	Balder BL2 P 600 X/Y		Balder BL2 P 900 X/Y		Balder BL2 P 1200 X/Y
Motor Power	600W		900W		1200W
Motor Supply Voltage	12V	24V	12V	24V	12V	24V
Maximum Pull	660Kg 1455 lb	660Kg 1455 lb	680Kg 1499 lb	680Kg 1499 lb	930Kg 2050 lb	930Kg 2050 lb
Maximum working load	200Kg 441 lb	220Kg 485 lb	300Kg 661 lb	320Kg 705 lb	420Kg 926 lb	480Kg 1058 lb
Working load	65Kg 143 lb	70Kg 154 lb	100Kg 220 lb	107Kg 236 lb	140Kg 309 lb	160Kg 353 lb
Current absorption @ working load	80 A	40 A	95 A	50 A	130 A	75 A
Maximum chain speed	28.9m/min 94.8 ft/min	28.2m/min 92.5 ft/min	22.6m/min 74.1 ft/min	25.3m/min 83 ft/min	31.2m/min 102.4 ft/min	30.1m/min 98.7 ft/min
Maximum chain speed @ working load	24.3m/min 79.7 ft/min	24.1m/min 79.1 ft/min	11.6m/min 38.1 ft/min	14.4m/min 47.2 ft/min	16.5m/min 54.1 ft/min	19.1m/min 62.7 ft/min
Weight	12.3Kg 27 lb		16.4Kg 33.2 lb		17.6Kg 38.8 lb
