Quick

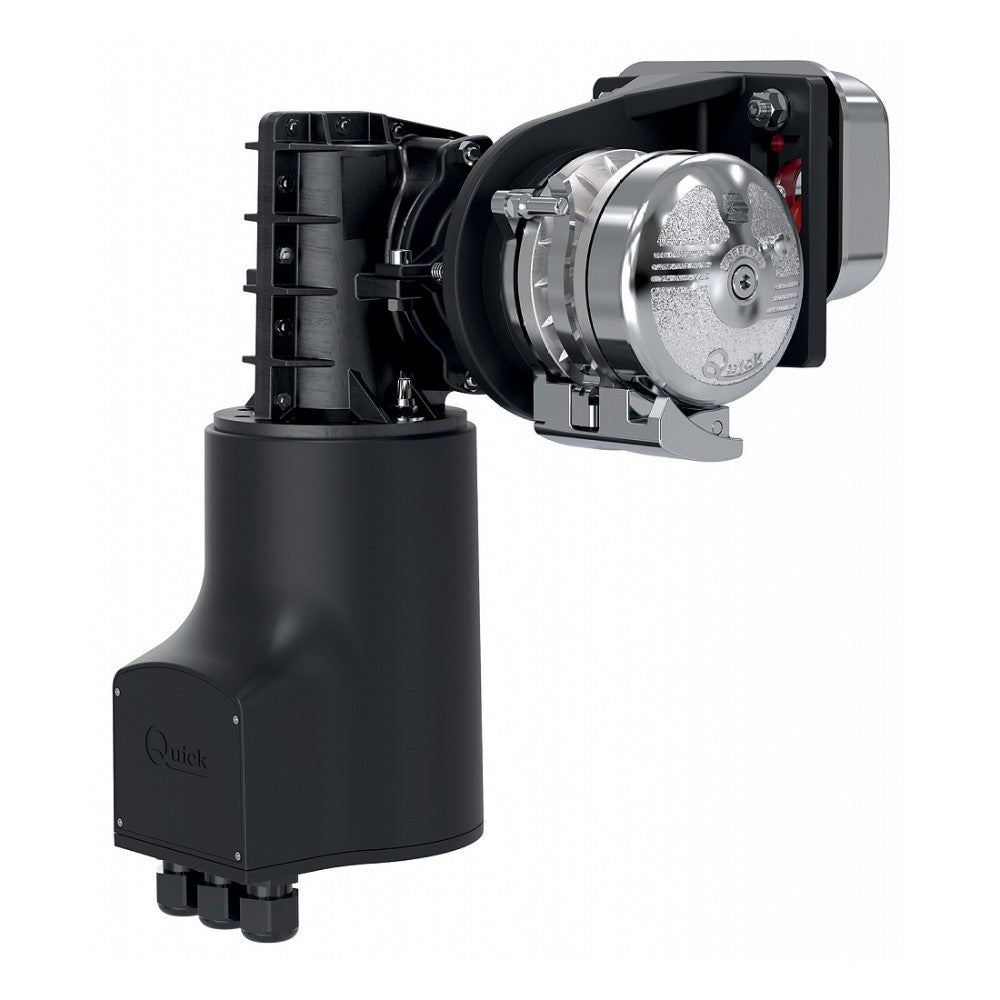

Quick Balder BL2R P 1212F Y Rope Only Windlass - 1200W 12V Y-Axis

£1,901.08 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Rope only windlasses
Maximum flexibility of installation
AISI 316 Stainless steel and chromed bronze
Automatic system of anchor-rode free-fall
Supplied with rope guide device
Right or left gypsy fitted in a mounting bracket
Watertight motor (IP67)
Technopolymer gearbox

BL2 Horizontal Axel Windlass FF is the ideal rope only windlass to be installed at the stern thanks to the special mounting kit. However it also adapts perfectly to any requirement and allows several combinations.
Features include Rope only windlass Maximum flexibility of installation AISI 316 Stainless steel and chromed bronze Automatic system of anchor-rode free-fall Supplied with rope guide device Watertight motor (IP67) Anodized aluminum gearbox.

Specifications

Standard Version	Balder BL2R P 600 X/Y		Balder BL2R P 900 X/Y		Balder BL2R P 1200 X/Y
Motor Power	600W		900W		1200W
Motor Supply Voltage	12V	24V	12V	24V	12V	24V
Maximum working load	200Kg 441 lb	200Kg 441 lb	320Kg 705 lb	320Kg 705 lb	420Kg 926 lb	420Kg 926 lb
Working load	65Kg 143 lb	70Kg 150 lb	100Kg 220 lb	107Kg 236 lb	140Kg 309 lb	160Kg 353 lb
Current absorption @ working load	80 A	40 A	95 A	50 A	130 A	75 A
Maximum chain speed	25 - 28m/min 82-91 ft/min		22-25m/min 72-82 ft/min		28-30m/min 91-98 ft/min
Weight	12.4Kg 27 lb		16.4Kg 36 lb		17.6Kg 39 lb
