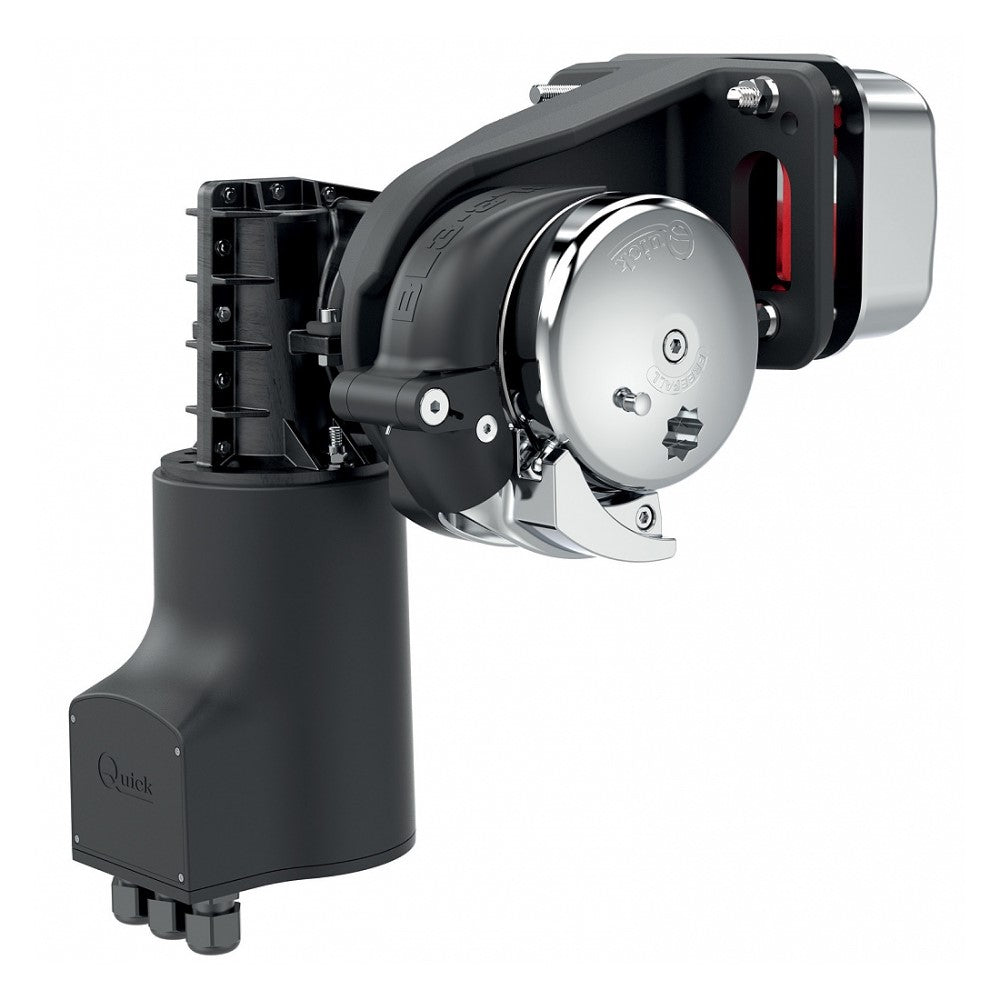

Quick Balder BL3 1512 X Windlass - 10mm 1500W 12V

£2,574.31 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Horizontal windlasses
Maximum flexibility of installation
AISI 316 Stainless steel and chromed bronze
Integrated sensor and magnet for chain counter
Rope and chain on a single gypsy
Automatic system of anchor-rode free-fall
Supplied with chain guide device
Supplied with pressure lever
Right gypsy fitted in a mounting bracket.
Watertight motor IP67 (IP66 BL3 600)

The Balder BL3FF is the ideal windlass to be installed at the stern thanks to the special mounting kit. However it also adapts perfectly to any requirement and allows several combinations. Fitted with a Free-fall device that enables the release of the gypsy clutch and a quicker fall of the chain.

Gypsy Options

Gypsy	6mm		8mm (5/16")				10mm (3/8")
Chain	6mm DIN 766	6mm ISO 766	8mm DIN 766	8mm ISO	5/16" G4	5/16" BBB	10mm ISO	3/8" G4

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.

Specifications

Standard Version	Balder BL3 P FF 600 X		Balder BL3 P FF 900 X		Balder BL3 P FF 1200 X		Balder BL3 P FF 1500 X
Motor Power	600W		900W		1200W		1500W
Motor Supply Voltage	12V	24V	12V	24V	12V	24V	12V	24V
Maximum Pull	600Kg 1323 lb	600Kg 1323 lb	850Kg 1864 lb	850Kg 1874 lb	1000Kg 2205 lb	1000Kg 2205 lb	1100Kg 2425 lb	1100Kg 2425 lb
Maximum working load	150Kg 330.7 lb	180Kg 369.8 lb	250Kg 551.1 lb	300Kg 661.4 lb	370Kg 815.7 lb	450Kg 992.1 lb	470Kg 1036.2 lb	540Kg 1190.5 lb
Working load	50Kg 110.2 lb	60Kg 132.3 lb	80Kg 176.4 lb	100Kg 220.5 lb	120Kg 264.5 lb	150Kg 330.7 lb	160Kg 352.7 lb	180Kg 396.8 lb
Current absorption @ working load	100 A	55 A	90 A	55 A	140 A	80 A	155 A	85 A
Maximum chain speed	29.2m/min 95.8 ft/min	26.4m/min 86.4 ft/min	27.4m/min 89.9 ft/min	26.4m/min 86.6 ft/min	36.6m/min 120 ft/min	40.9m/min 134.2 ft/min	29.2m/min 95.8 ft/min	29.7m/min 97.4 ft/min
Maximum chain speed @ working load	22.2m/min 72.8 ft/min	17.8m/min 58.4 ft/min	14.4m/min 47.2 ft/min	14.8m/min 48.5 ft/min	20.4m/min 66.9 ft/min	21.4m/min 70.2 ft/min	16.3m/min 53.5 ft/min	19m/min 62.3 ft/min
Weight	14.7Kg 32 lb		18.8Kg 41 lb		20Kg 44 lb		23.8Kg 52.5 lb
