Quick

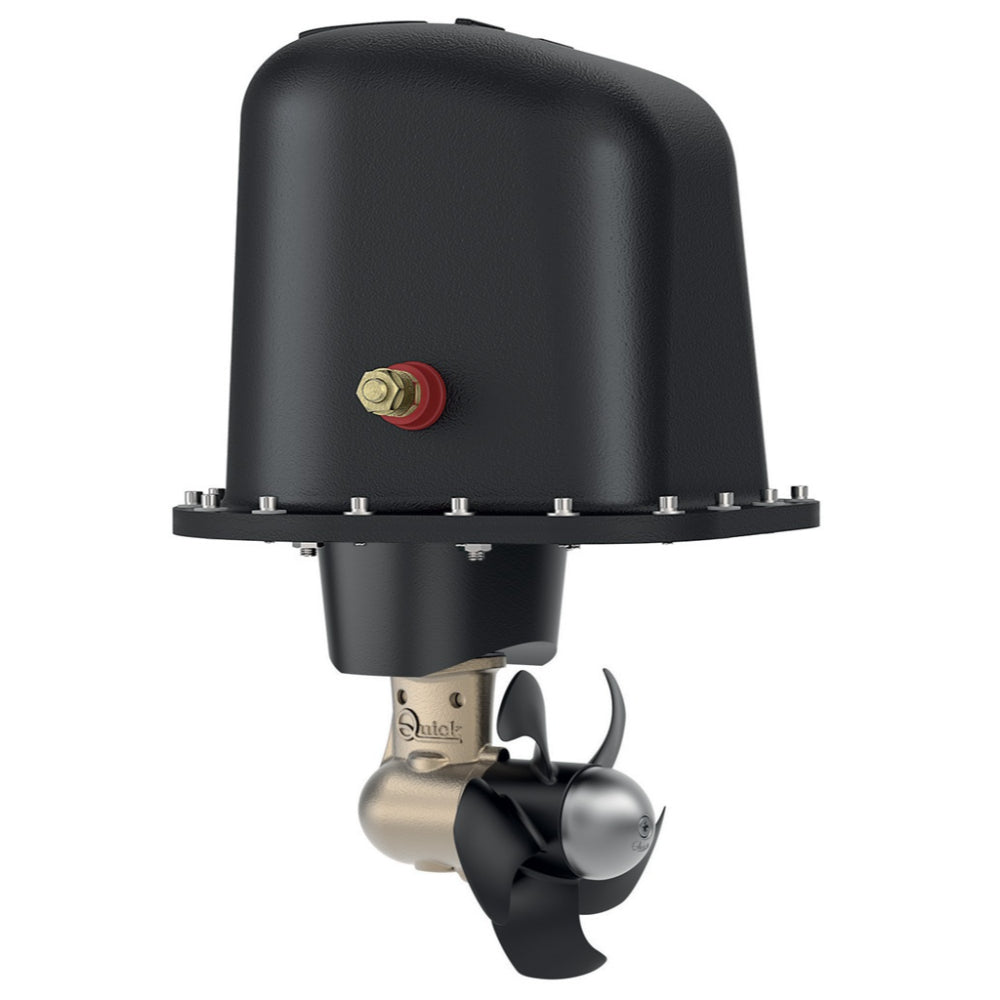

Quick BTQ 140-40 Single Prop Thruster - 40KGF 12V With Bow Casing

£1,888.79 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Single propeller made in sturdy composite material
Recommended boat length from 6-10 m (20-33 ft)
Solenoids protection carter in sturdy composite material
Bronze Gearbox
Easy replaceable aluminium anode
Equipped with elastic coupling

Model	BTQ 140-30	BTQ 140-30 CB	BTQ 140-30 CS	BTQ 140-40	BTQ 140-40 CB	BTQ 140-40 CS
Casing	No Casing	Bow Casing	Stern Casing	No Casing	Bow Casing	Stern Casing
Thrust	30Kgf 66 lb			40Kgf 88.2 lb
Motor Power	1.5Kw			2.2Kw
Voltage	12V DC			12V DC
Tunnel Diameter	140mm 5"1/2			140mm 5"1/2
Recommended Boat Size	6 - 8m 20 - 26ft			7 - 10m 23 - 33ft
Weight	11.3Kg 24.9 lb	13.7Kg 30.2 lb	13.7Kg 30.2 lb	12.2Kg 26.9 lb	14.6Kg 32.2 lb	14.6Kg 32.2 lb

Single propeller made in sturdy composite material. Recommended for boat lengths 6 - 10 m (20-33 ft). The solenoids is protected by a sturdy composite material. The bronze Gearbox is created so that the behavior of the propeller is unaffected in either direction and is provided with a hydrodynamic profile that minimizes turbulence. The conical gears that make up the gearbox are reinforced and adjusted to ensure maximum efficiency.

An elastic joint optimizes the alignment between the motor and gearbox and acts as an even tension device preserving the operating system from impulses from the thruster with above average results. Maintenance is not required since the special highly resistant components guarantee a perfect lubrication seal for life.

The 5-blade techonopolymer Propellers guarantee maximum thrust performance and reduction in current absorption. The aluminium anode is easily replaceable and in case of total corrosion of the anode the prop does not get loste due to its indpendant attachedment to the pod.

View full details
