Quick

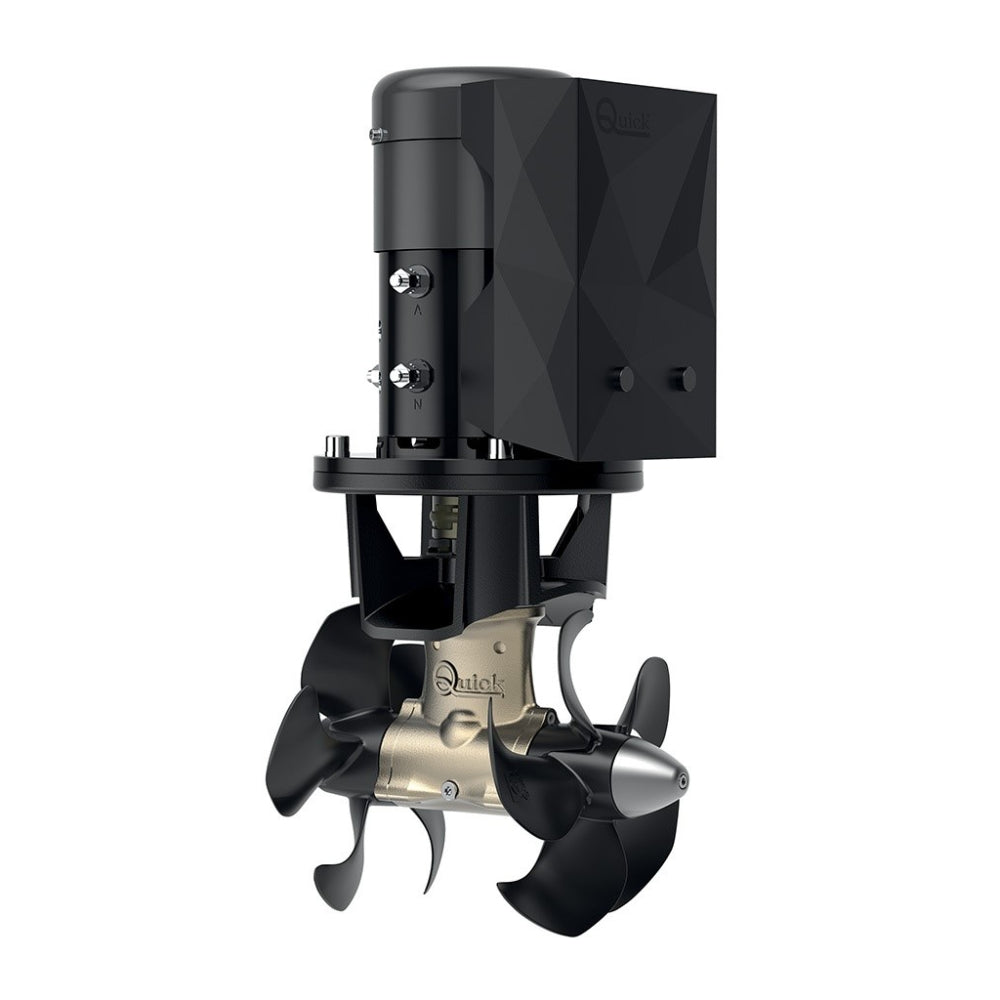

Quick BTQ 250-120 Twin Prop Thruster - 120KGF 12V No Casing
Quick BTQ 250-120 Twin Prop Thruster - 120KGF 12V No Casing
Couldn't load pickup availability
- Double counter rotating propellers made in sturdy composite material
- Recommended boat length from 12-21 m (39-69 ft)
- Solenoids protection carter in sturdy composite material
- Bronze Gearbox
- Easy replaceable aluminium anode
- Equipped with elastic coupling
| Model | BTQ 250-120 | BTQ 250-140 | BTQ 250-240 | |
|---|---|---|---|---|
| Thrust | 120Kgf 264 lb | 140Kgf 308 lb | 240Kgf 529 lb | |
| Motor Power | 6.5Kw | 8Kw | 10Kw | |
| Voltage | 12V DC | 24V DC | 24V DC | 24V DC |
| Tunnel Diameter | 250mm 9"27/32 | 250mm 9"27/32 | 250mm 9"27/32 | |
| Recommended Boat Size | 12 - 17m 39 - 56ft | 12 - 19m 39 - 62ft | 16 - 21m 52 - 69ft | |
| Weight | 35.5Kg 78.2 lb | 34.2Kg 75.4 lb | 34.2Kg 75.4 lb | 49.1Kg 108.2 lb |
Double counter rotating propellers made in sturdy composite material. Recommended for boat lengths 12-21 m (39-69 ft). The solenoids is protected by a sturdy composite material. The bronze Gearbox is created so that the behavior of the propeller is unaffected in either direction and is provided with a hydrodynamic profile that minimizes turbulence. The conical gears that make up the gearbox are reinforced and adjusted to ensure maximum efficiency.
An elastic joint optimizes the alignment between the motor and gearbox and acts as an even tension device preserving the operating system from impulses from the thruster with above average results. Maintenance is not required since the special highly resistant components guarantee a perfect lubrication seal for life.
The 5-blade techonopolymer Propellers guarantee maximum thrust performance and reduction in current absorption. The aluminium anode is easily replaceable and in case of total corrosion of the anode the prop does not get loste due to its indpendant attachedment to the pod.
