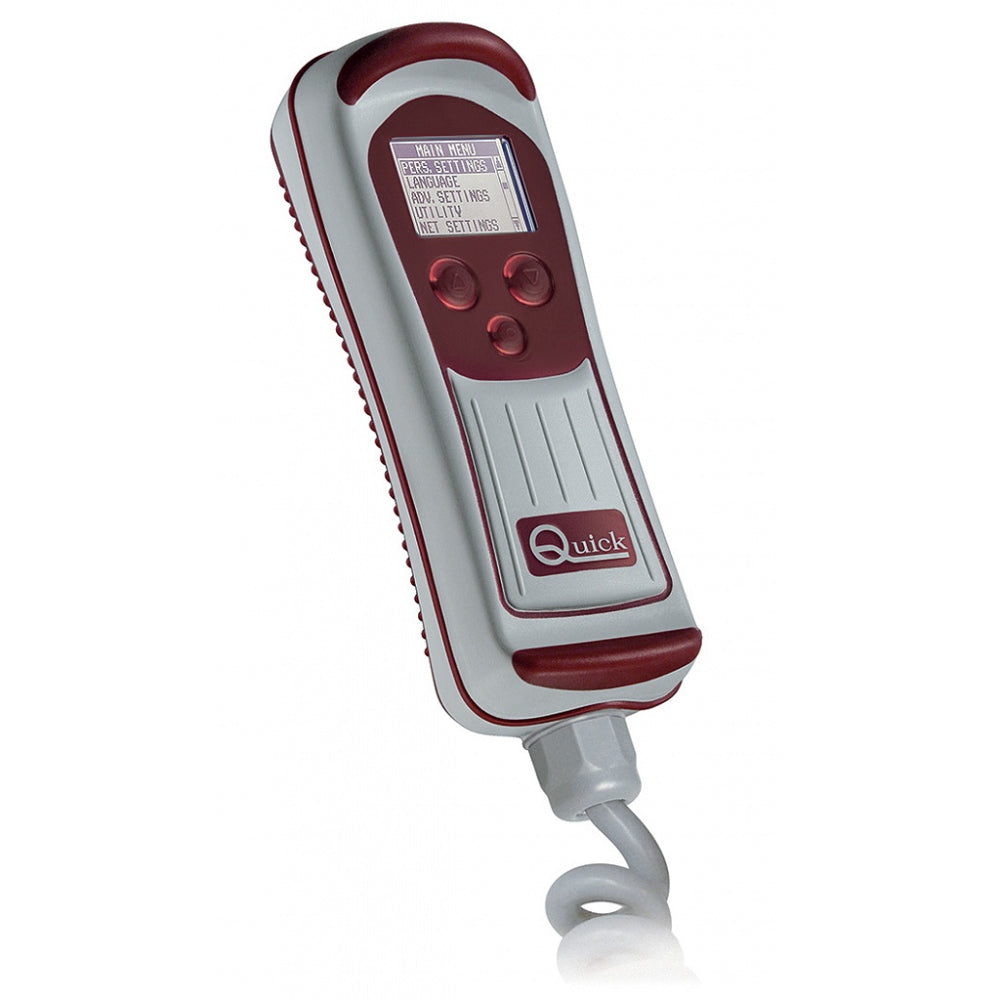

Quick CHC 1103 Handheld Chain Counter

• Supply Voltage: 9 - 32V DC
• Current absorption: 12mA @ 12V 8mA @ 24V
• Operating Temperature: -20°C - 70°C (-5°F - 158°F)
• Weight: 750g (1.65lb)

The CHC 1103 is a complete and reliable instrument to manoeuvre the windlass from distance and control the length of chain lowered through the LCD graphic display. The CHC 1103 is constructed with rubber inserts to ensure high strength long durability perfect watertightness and a secure grip.

Operating Functions

• Automatic lowering function
• Up alarm function
• Locked keys function
• Ability to control windlass free-fall device
• Anchor recovery function in case of system failure

Displays

• information in 5 languages
• Chain speed
• Supply voltage
• Depth of chain lowered (Feet or Metres)

General Features

• Graphic LCD display
• Backlit display with 8 ilumination levels
• Adjustable display contrast with 8 levels
• Automatic display contrast compensation
• Can bus interface for data transfer
