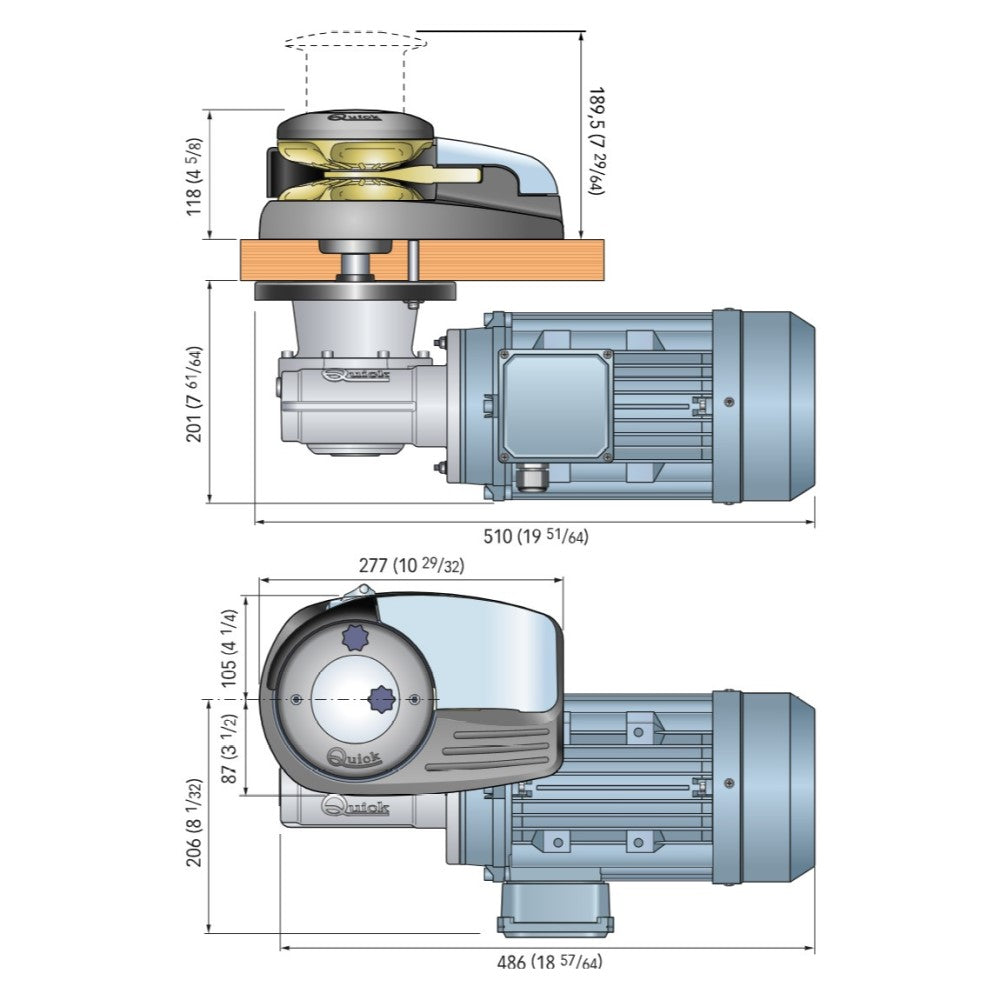

Quick Dylan DH4 AC3000D Windlass - 12-13mm 3000W 230/400V With Drum

£3,665.90 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Vertical windlasses
Base in anodized aluminium in hard oxide
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Emergency manual lift system
Supplied with pressure lever
Inspection lid
IP66 / IP67 watertight motor
Anodized aluminium gearbox

The DH4 is a vertical application windlass perfect for boats with limited deck space. Comes in different variations with or without the drum capstan for rope retrieval as well as various gypsy sizes for rope or chain retrieval. High power watertight AC or DC Motors and a Hydrualic power option.

Gypsy Options

Gypsy	10mm (3/8")			12/13mm
Chain	10mm DIN 766	10mm ISO	3/8" G4	13mm DIN 766	12mm ISO	7/16" G4
Rope	15.8mm (5/8") - 19mm (3/4")			19mm (3/4")

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.

Specifications

Electric Versions

Standard Version	DH4 1500/1500D	DH4 1700/1700D		DH4 2000/200D	DH4 AC 3000/3000D
Motor Power	1500W	1700W		2000W	3000W
Motor Supply Voltage	12V	12V	24V	24V	230/400V AC
Maximum Pull	1100Kg 2425 lb	1150Kg 2535 lb	1200Kg 2646 lb	1600Kg 3527 lb	2800Kg 6173 lb
Maximum working load	400Kg 882 lb	470Kg 1036 lb	570Kg 1257 lb	750Kg 1653 lb	930Kg 2050 lb
Working load	135Kg 298 lb	155Kg 342 lb	190Kg 419 lb	250Kg 551 lb
Current absorption @ working load	150 A	170 A	95 A	105 A
Maximum chain speed	35.2m/min 115.5 ft/min	33.5m/min 109.9 ft/min	39m/min 128 ft/min	35m/min 114.8 ft/min	15m/min 50.5 ft/min
Maximum chain speed @ working load	19m/min 62.3 ft/min	16.2m/min 53.1 ft/min	20.8m/min 68.2 ft/min	22.3m/min 73.2 ft/min
Weight without drum	25.8Kg 51.1 lb	25.1Kg 55.3 lb		30.7Kg 67.7 lb	33.1Kg 81.35 lb
Weight with drum	27.8Kg 54 lb	26.4Kg 58.2 lb		32Kg 70.5 lb	36.9Kg 81.35 lb

Hydraulic Versions

Standard Version	DH4 Hydro/Hydro D
Motor type	Reversible gear-type
Motor Power	9.6cc 0.59in³
Maximum Pressure	210 bar 3045 psi
Maximum Flow Rate	40L/min 9.1 USG/min
Maximum Lifting Capacity	210 bar = 1000Kg 3045 PSI = 2204.6 lb
Maximum chain speed	23m/min 75.4 ft/min
Weight without drum	19.7Kg 43.43 lb
Weight with drum	22.5Kg 49.6 lb
