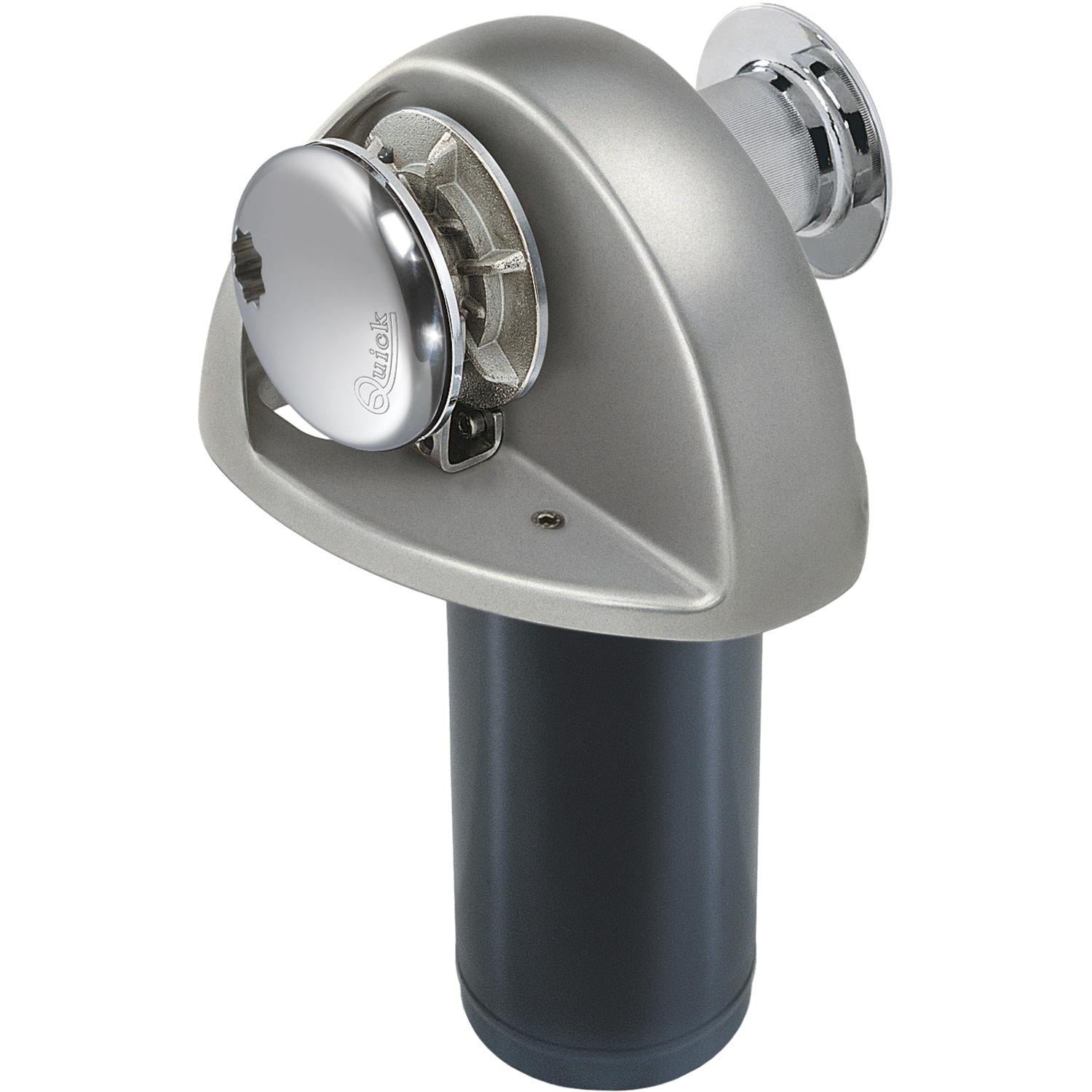

Quick Eagle E1 312D Horizontal Windlass - 1/4" 300W 12V With Drum
Quick Eagle E1 312D Horizontal Windlass - 1/4" 300W 12V With Drum
Regular price
£1,415.39 GBP
Regular price
Sale price
£1,415.39 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Horizontal windlasses
- Base in anodized aluminum in hard oxide
- With and without drum
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- IP66 watertight motor
The Eagle E1 allows for extremely simple and quick installation with a vertical ip66 motor and anodized aluminium base.
Gypsy Options
| Gypsy | 6mm | 1/4" | |
|---|---|---|---|
| Chain | 6mm DIN 766 | 6mm ISO | Details to follow Call for details |
Specifications
| Standard Version | Eagle E1 300/300D | Eagle E1 500/500D |
|---|---|---|
| Motor Power | 300W | 500W |
| Motor Supply Voltage | 12V | >12V |
| Maximum Pull | 380Kg 838 lb | 630Kg 1389 lb |
| Maximum working load | 100Kg 220 lb | 250Kg 551 lb |
| Working load | 30Kg 66 lb | 80Kg 176 lb |
| Current absorption @ working load | 60 A | 90 A |
| Maximum chain speed | 22.8m/min 74.8 ft/min | 22.2m/min 72.8 ft/min |
| Maximum chain speed @ working load | 22.5m/min 73.8 ft/min | 16.5m/min 53.1 ft/min |
| Weight without drum | 8Kg 17.6 lb | 8Kg 17.6 lb |
| Weight with drum | 9.3Kg 20.5 lb | 9.3Kg 20.5 lb |
