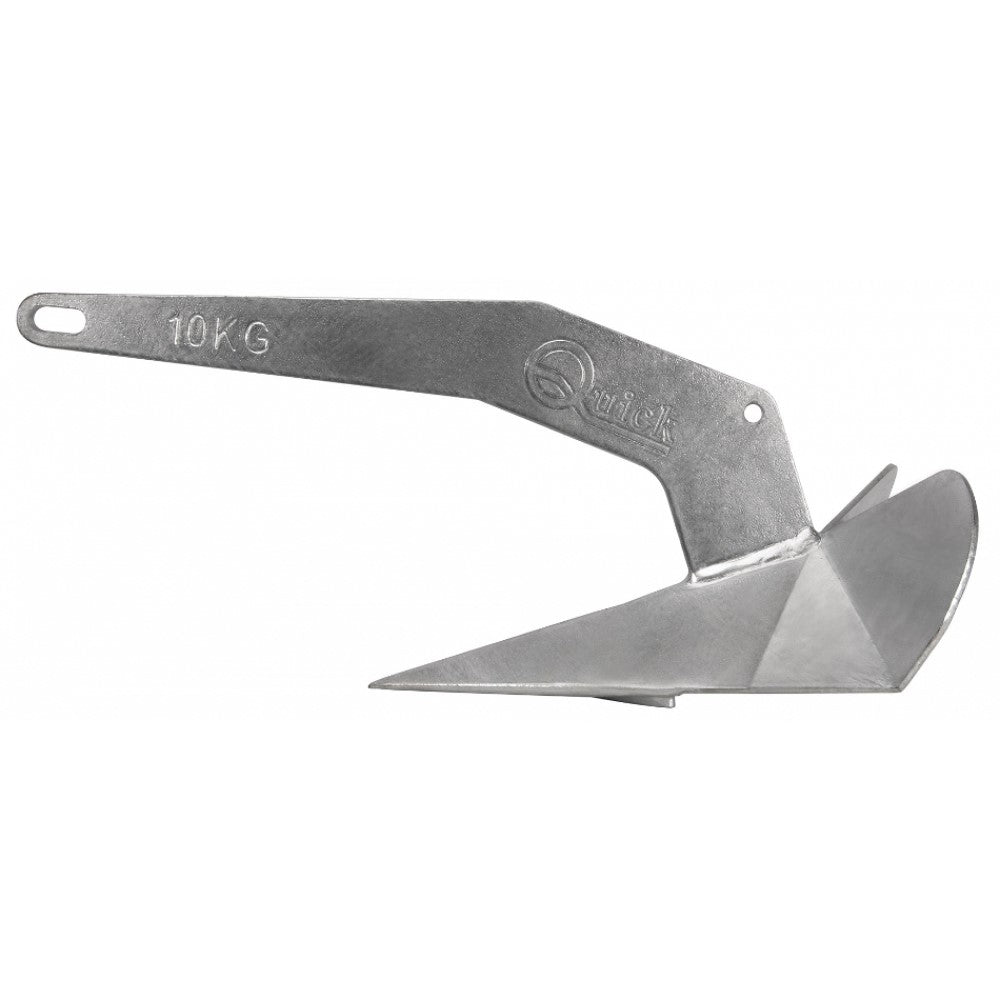

Quick Galvanized Steel Plow Anchor - 10KG

£260.75 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Hot Dipped Galvanized Steel
Plow-shaped arm
Available Weights: 4Kg (8lb) 7.5Kg (16lb) 10Kg (22lb) 15Kg (33lb)

The Galvanized Plow shaped anchors leads the way in innovative anchor engineering. The high-grade manganese steel used in the construction of the Plow anchor gives it maximum tensile strength. Its unique shank profile and ballasted tip make the Plow anchor self-launching. The low center of gravity and self-righting geometry ensure that the Plow anchor will set immediately.

Weight	4Kg 8 lb	7.5Kg 16 lb	10Kg 22 lb	15Kg 33 lb
Recommended Chain Size	6/7mm 1/4"	8mm 5/16"	8mm 5/16"	8mm 5/16"
Boat Length	6-8m 20-26ft	7-10m 23-33ft	8-11m 26-36ft	10-14m 33-46ft
Dimension A	230mm 9"1/16	260mm 10"1/4	300mm 11"3/4	350mm 13"3/4
Dimension B	510mm 20"1/16	630mm 24"7/8	690mm 27"1/8	780mm 30"3/4
Dimension C	8mm 5/16""	10mm 3/8"	17mm 3/4"	17mm 3/4"
Dimension D	365mm 14"3/8	490mm 19"1/4	500mm 19"3/4	560mm 22"1/16
Dimension E	210mm 8"1/4	290mm 11"3/8	260mm 10"1/4	270mm 10"3/4
