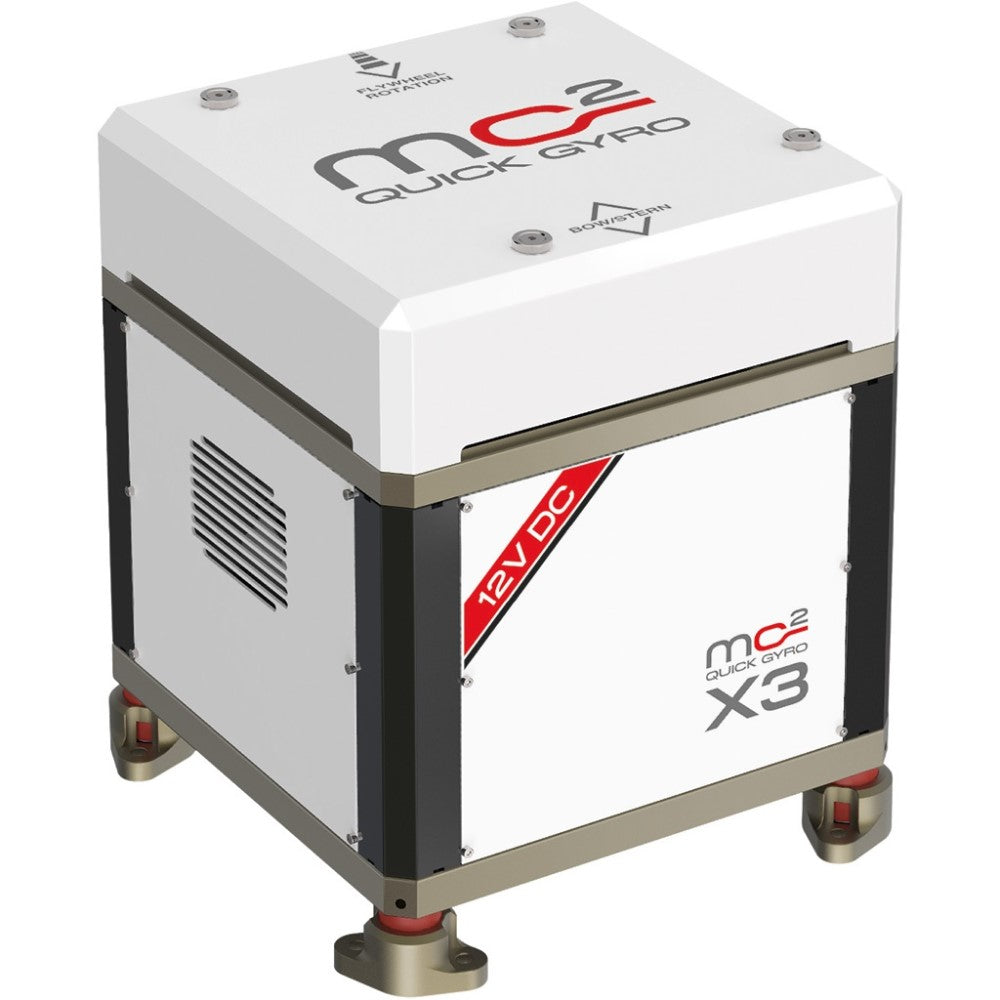

Quick MC2 X3 DC Gyroscope With Custom Base Plate - 12Vdc

• Input Voltage: 12Vdc
• Rated Speed: 7 000 RPM
• Angular Momentum: 643 Nms
• Output Torque: 3 900 Nm
• Spool Up time to rated RPM: 15 Minutes
• Spool up time to stabilization: 10 Minutes
• Max Power Absorbed: 900W
• Noise Output: <70dB
• Ambient Air Temperature: -10°C - 55°C (14°F - 131°F)
• Weight: 130Kg (286.6 lb)

MC² Quick Gyro stabilizers can reduce boat roll up to 95% are very effective at speed as well as at anchor. The range is conceived to meet any kind of requirement ranging from the smallest boat (day cruise or center console) to superyacht with no installation limits. MC² Quick Gyro stabilizers offer unique features and are the result of careful research aimed at achieving highly competitive performances and assuring maximum safety.

Rapid Spool Up - Quickly improve comfort with MC2 Quick Gyro. The X3 DC range of Gyroscopes is up and running in just 10 minutes and in 15 minutes it eliminates the roll (95%)

Mobile App - Download the MC2  Mobile App to record the performance of the stabilizers. With the MC2  Mobile App you can check the roll reduction percentage the improvement in comfort and other interesting details. The MC2 Mobile App can be installed on compatible iOS and Android smartphones and tablets.

Low Heat Output - Thanks to the horizontal axis rotation system the mechanical stress and friction on the bearings are reduced therefore lowering heat output. The MC2 Quick Gyro is a natural dissipated system thus it does not require water pumps or seawater inlets unlike water-cooled systems.

Less Stress More Advantages

The MC2 Quick gyroscope flywheel rotates around a horizontal axis evenly distributing the weight on the bearings unlike other models with a vertical axis that primarily work on the lower bearing. The weight is distributed better hence it requires less rotations and less effort and promotes quicker stabilization. These advantages make the product easy to install and reduce the need for maintenance; moreover no water pumps or additional seawater intakes are necessary. Thanks to an adequate ventilation in the installation compartment or the use of an air conditioning system the proper operation and maximum performance of the gyroscope are guaranteed.

Easy Installation

The MC2 Quick Gyro gyroscope is compact and structured to be easily installed on any type of boat. The product is supplied ready for installation with mechanical anchoring and connection to the power supply. These features also make it ideal for refitting. The gyroscope’s functions are controlled by two fundamental components of the system - the driver and the control panel. Installation is exclusively carried out by authorized Quick centers. The company’s technical support ensures that each installation is performed properly and certifies its proper operation with the “Quick commissioning.”

Low Maintenance

The MC2 Quick Gyro stabilizer like any machine needs periodic maintenance to be able to ensure that it always operates properly. Periodic maintenance can be performed on board the boat without having to dismantle the stabilizer. MC2  Quick Gyros are protected but not vacuum sealed therefore they are easy to inspect. The Remote Control displays a notice for the necessary periodic maintenance that must be performed by Quick authorized staff.

X DC series for 12V systems

The range MC² Quick Gyro DC for 12V systems is designed to meet the growing demand of the ship owners by offering more specific and tailored products. The series includes the brand new X2-X3 as well as X5-X7-X10-X13 models available as DC 12V versions. With integrated drivers these stabilizers are extremely cutting-edge designed for performance and plug & play  installation. The MC² Quick Gyro X2 and X3 have been designed to be installed on smaller size boats. The MC² Quick Gyro X2 and X3 are perfect for center consoles or small size day cruisers they are 12V DC battery-powered. They are extremely light in weight and characterized by a compact design.

Control Systems

Quick Nautical Network - MC2  Quick Gyro stabilizers can be controlled with the QNN-Quick Nautical Network. QNN is an innovative product compatible with all new generation chart plotters through the QNN gateway which is the device that transfers the Quick system data to the navigation panels using the HTML5 protocol. QNN-Quick Nautical Network includes the control of the maneuvering anchoring battery charger inverter and lighting systems.

Remote Panels - The MC2 Quick Gyro stabilizers can be managed through the remote touch panel with 5” graphic display. The panel can be used to monitor the precession release RPM and width of the angle of inclination. User utilities include periodic maintenance reminders and alarms in the event of a failure. Adjustments and display preferences are also available.
