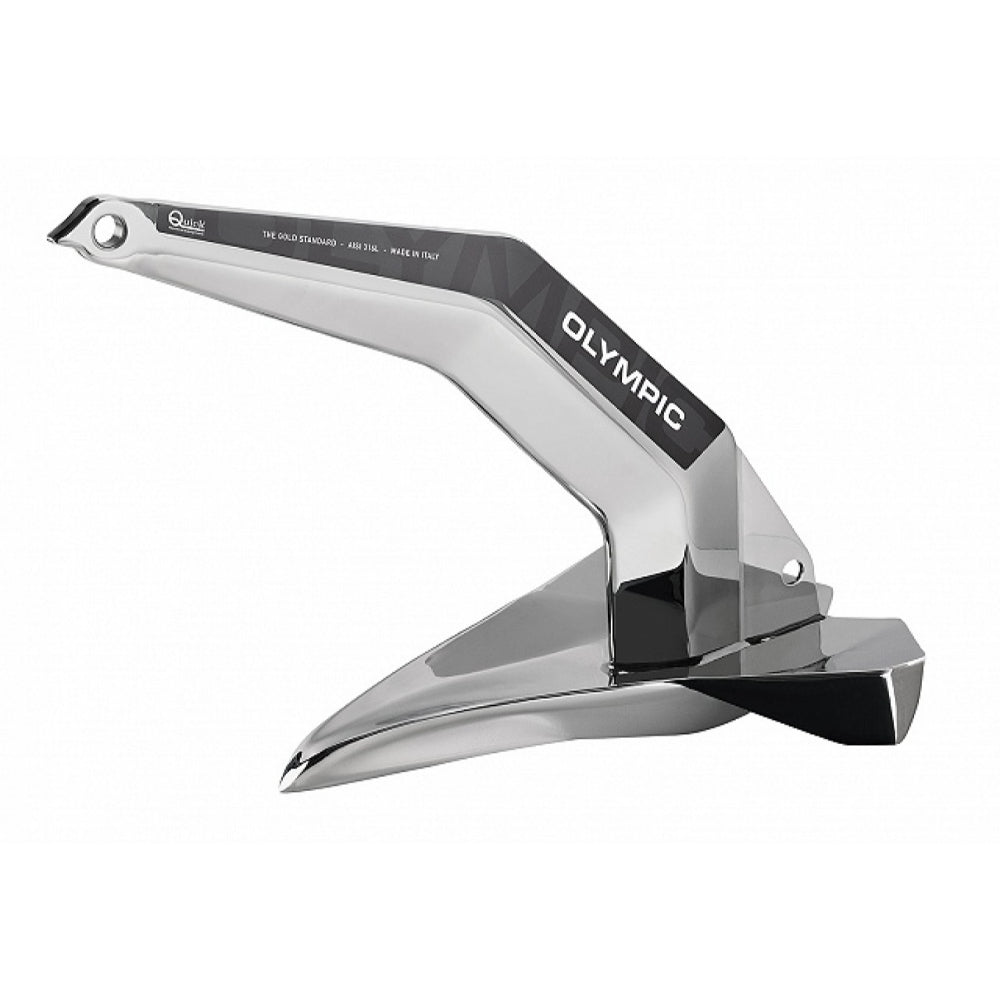

Quick Olympic AISI 316L Stainless Steel Anchor - 16KG Polished
Quick Olympic AISI 316L Stainless Steel Anchor - 16KG Polished
Couldn't load pickup availability
- Made in Italy
- Optimized design for enchance penetration capacity
- SHHP Classification by RINA
- Universal Compatibility
- Made of AISI 316L Stainless Steel
- Polished or Sand Blasted Finish
| Weight | 7Kg 15 lb | 10Kg 22 lb | 16Kg 35 lb | 20Kg 44 lb |
|---|---|---|---|---|
| Recommended Chain Size | 6-8mm 1/4"-5/16" | 6-8mm 1/4"-5/16" | 8-10mm 5/16"-3/8" | 10mm 3/8"" |
| Boat Length | 6.5-9.6m 21.30-31.5ft | 8.6-12.4m 28.2-40.7ft | 11.3-14.7m 37.1-48.2ft | 13.5-16.8m 44.3-55.1ft |
| Boat Weight | 2t | 3.8t | 7t | 11t |
| Dimension A | 302mm 11"57/64 | 349mm 13"47/64 | 377mm 14"54/64 | 417mm 16"27/64 |
| Dimension B | 528mm 20"50/64 | 595mm 23"27/64 | 665mm 26"12/64 | 729mm 28"45/64 |
| Dimension C | 15mm 9/16" | 15mm 9/16" | 17mm 11/16" | 17mm 11/16" |
| Dimension D | 12mm 8/16" | 12mm 8/16" | 18.5mm 12/16" | 20mm 13/16" |
| Dimension E | 405mm 15"60/64 | 469mm 18"30/64 | 507mm 19"61/64 | 559mm 22"1/64 |
| Dimension F | 355mm 13"62/64 | 408mm 16"4/64 | 443mm 17"28/64 | 490mm 19"19/64 |
| Dimension G | 211mm 8"20/64 | 246mm 9"44/64 | 264mm 10"25/64 | 289.5mm 11"25/64 |
| Dimension H | 173mm 6"52/64 | 200mm 7"56/64 | 218mm 8"37/64 | 241mm 9"31/64 |
| Dimension I | 229mm 9"1/64 | 271mm 10"43/64 | 284mm 11"12/64 | 314mm 12"23/64 |
Olympic Anchors shape and size are proportioned in order to have a greater quantity of lead on the front of the fluke. This weight distribution choice allows for (in a compact size) a center of gravity more projected towards the tip thus increasing its penetrating capacity.
The process of sheet metal forming subsequently welded was the manufacturing process chosen for these anchors. This allows a high strength/mass ratio thus guaranteeing weight distribution optimization. Furthermore the cavities generated and the air trapped in them create a floating effect which results in a correct positioning of the anchor on the seabed.
Thanks to the compact shank Olympic Anchors will adapt to most bow rollers currently on the market. Olympic Anchors are available in polished or satin finish.
Tip - The tip develops in two circular surfaces designed to facilitate the sliding of the impacted material during the seabed penetration process.
Reinforcing Sheet - The special reinforcement applied between the fluke and the anchor’s body has a double function: on one hand it provides greater shank resistance to exceptional pulls thus increasing the joining surface between the two anchor’s elements; on the other side it allows to fix the buoy rope to release the anchor.
Material - Olympic Achors are made of AISI 316L staniless steel.
Stablizing Flaps - The stabilizing flaps allow the anchor to maintain a position perpendicular to the seabed during the penetration phase.
Made in Italy - Olympic Anchors have been developed through detailed product engineering and production process carried out inside Quick. All the suppliers are Italian and many are based
close to the production facility giving a head start in reducing supply chain impact. Coupled with this is a lean logic production approach which reduces waste and other losses.
