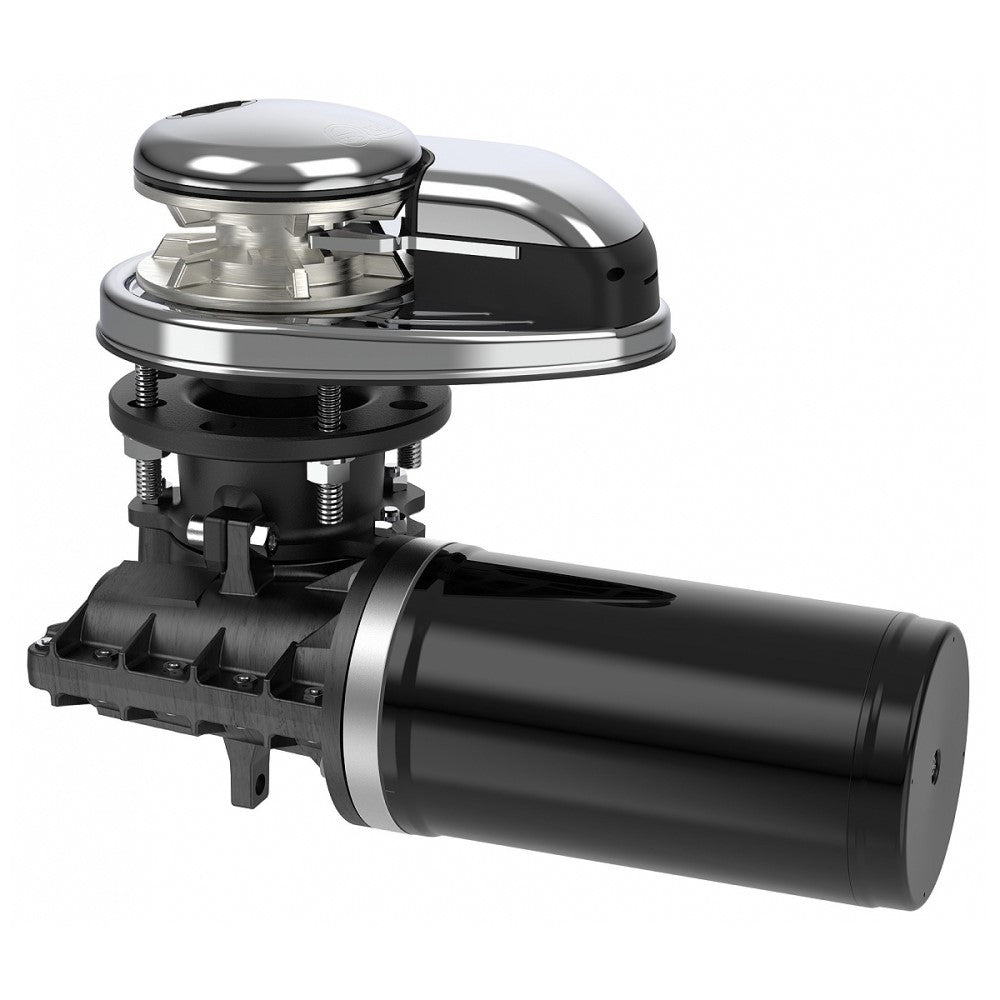

Quick Prince DP1 P 312 Windlass - 6mm 300W 12V No Drum

£972.98 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Vertical windlasses
Aisi 36 Stainless steel base and anodized aluminium in hard oxide
With and without drum
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Inspection cover
IP66 Watertight motor
Technopolymer gearbox

The DP1 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. It is a chain only unit. Additional features include an IP67 watertight motor anodized aluminum gearbox and inspection lid. The package is sold complete with the windlass solenoid unit clutch handle and mounting hardware.

Gypsy Options

Gypsy	6mm		1/4"
Chain	6mm DIN 766	6mm ISO	1/4" BBB

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.

Specifications

Standard Version	Prince DP1 300/300D	Prince DP1 500/500D
Motor Power	300W	500W
Motor Supply Voltage	12V	12V	24V
Maximum Pull	370Kg 814 lb	660Kg 1455 lb
Maximum working load	120Kg 265 lb	200Kg 441 lb	220Kg 485 lb
Working load	40Kg 88 lb	65Kg 143 lb	70Kg 154 lb
Current absorption @ working load	60 A	80 A	40 A
Maximum chain speed	26.3m/min 86.3 ft/min	25.2m/min 82.7 ft/min
Maximum chain speed @ working load	22.5m/min 73.8 ft/min	18.5m/min 59.7 ft/min	19.3m/min 63.3 ft/min
Weight without drum	8.3Kg 18 lb	8.3Kg 18 lb
Weight with drum	9.3Kg 20 lb	9.3Kg 20 lb
