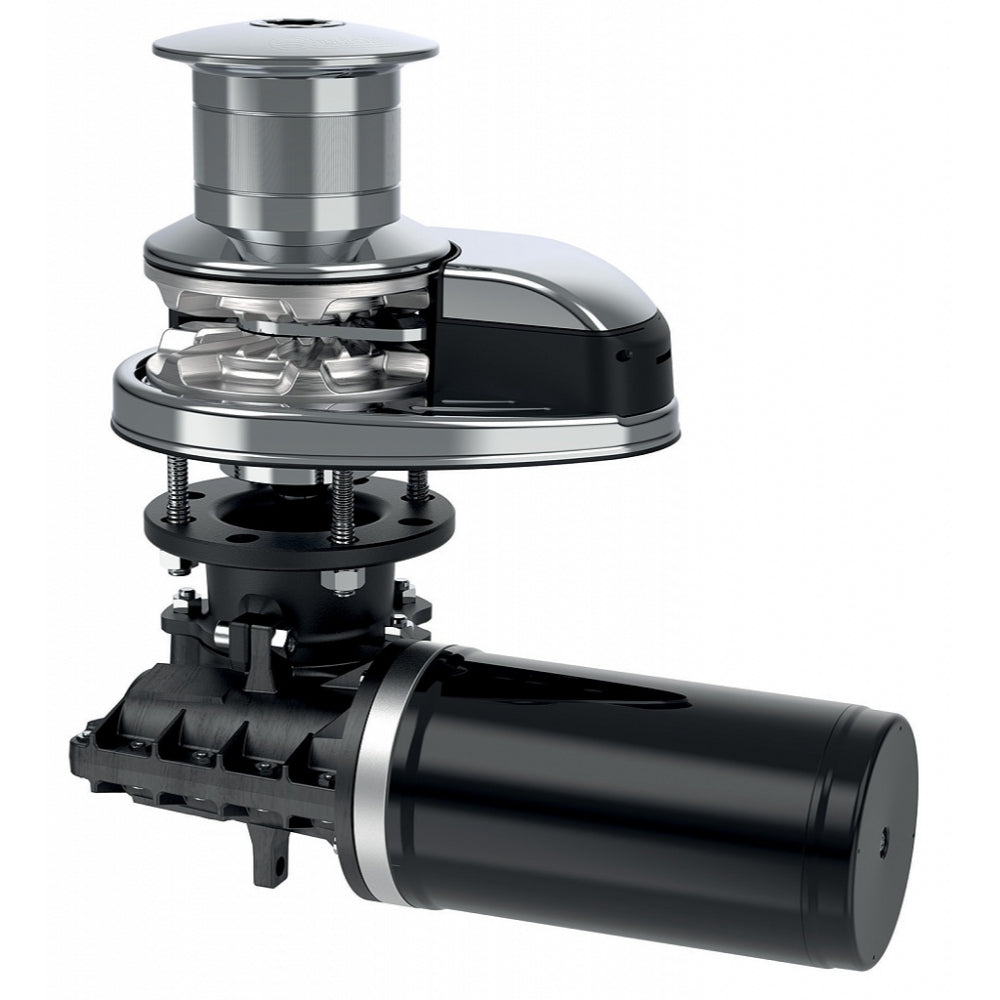

Quick Prince DP2 P 512D Windlass - 8mm 500W 12V With Drum

£1,231.06 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Vertical windlasses
Stainless steel Aisi 316 base
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Supplied with pressure lever
Inspection lid
IP67 (700 - 1000 W) / IP66 (300 - 500 W)
Technopolymer gearbox

The DP2 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. It comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor anodized aluminum gearbox and inspection lid. The package is sold complete with the windlass solenoid unit clutch handle and mounting hardware.

Gypsy Options

Gypsy	6mm		7mm (1/4")				8mm			5/16"
Chain	6mm DIN 766	6mm ISO	7mm DIN 766	7mm ISO	1/4" G4	1/4" BBB	8mm DIN 766	8mm ISO	5/16" BBB	5/16" G4
Rope	12.7mm (1/2")		12.7mm (1/2")		12.7mm (1/2")		12.7mm (1/2")

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.

Specifications

Standard Version	Prince DP2 P 300/300D	Prince DP2 P 500/500D		Prince DP2 P 700/700D		Prince DP2 P 1000/1000D
Motor Power	300W	500W		700W		1000W
Motor Supply Voltage	12V	12V	24V	12V	24V	12V	24V
Maximum Pull	370Kg 814 lb	660Kg 1455 lb	660Kg 1455 lb	680Kg 1499 lb	680Kg 1499 lb	930Kg 2050 lb	930Kg 2050 lb
Maximum working load	120Kg 265 lb	200Kg 441 lb	220Kg 485 lb	300Kg 661 lb	320Kg 705 lb	420Kg 926 lb	480Kg 1058 lb
Working load	40Kg 88 lb	65Kg 143 lb	70Kg 154 lb	100Kg 220 lb	107Kg 236 lb	140Kg 309 lb	160Kg 353 lb
Current absorption @ working load	65 A	80 A	40 A	95 A	50 A	130 A	75 A
Maximum chain speed	26.3m/min 86.3 ft/min	25.2m/min 82.7 ft/min
Maximum chain speed @ working load	29.2m/min 95.8 ft/min	28.9/min 94.8 ft/min	28.2m/min 92.5 ft/min	22.6m/min 74.1 ft/min	25.3m/min 83 ft/min	31.2m/min 102.4 ft/min	30.1m/min 98.8 ft/min
Weight without drum	9Kg 19 lb	9Kg 19 lb		12.8Kg 28 lb		14.2Kg 31 lb
Weight with drum	9.8Kg 21 lb	9.8Kg 21 lb		13.7Kg 30 lb		15.1Kg 33 lb
