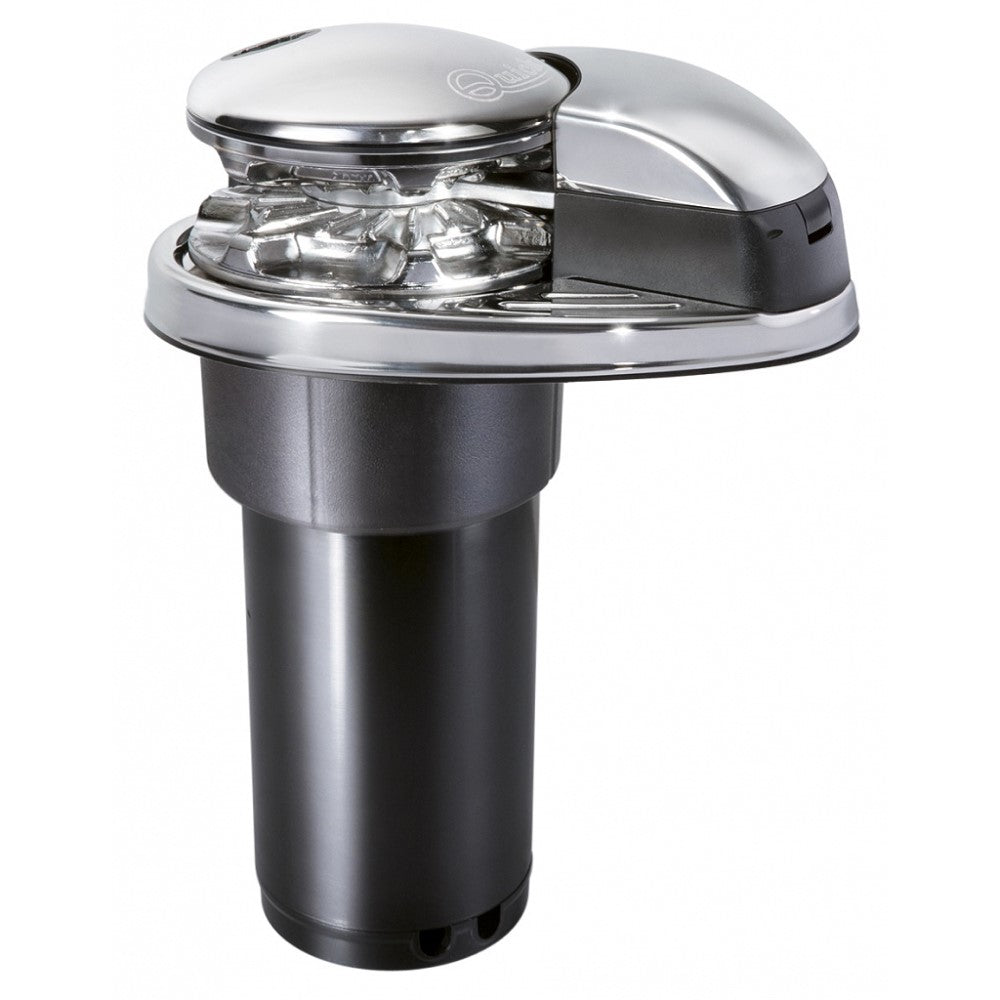

Quick Prince DP2E 600 Windlass - 7mm 500W 12V No Drum

£1,269.53 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Vertical windlasses
Stainless steel Aisi 316 base and anodized aluminium in hard oxide.
With and without drum
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Supplied with pressure lever
Inspection lid
Motor watertight to IP66
Anodized aluminium gearbox

The DP2E is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. It unit comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor epicyclical gearbox inspection lid and easy drop-in installation. The package is sold complete with the windlass solenoid unit clutch handle and mounting hardware.

Gypsy Options

Gypsy	6mm		7mm (1/4")				8mm			5/16"
Chain	6mm DIN 766	6mm ISO	7mm DIN 766	7mm ISO	1/4" G4	1/4" BBB	8mm DIN 766	8mm ISO	5/16" BBB	5/16" G4
Rope	12.7mm (1/2")		12.7mm (1/2")		12.7mm (1/2")		12.7mm (1/2")

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.

Specifications

Standard Version	Prince DP2E 600/600D	Prince DP2E 1000/1000D	Prince DP2E 1100/1100D
Motor Power	500W	800W
Motor Supply Voltage	12V	12V	24V
Maximum Pull	620Kg 1367 lb	820Kg 1808 lb	820Kg 1808 lb
Maximum working load	200Kg 441 lb	290Kg 639 lb	290Kg 639 lb
Working load	65Kg 143 lb	95Kg 209 lb	95Kg 209 lb
Current absorption @ working load	60 A	84 A	53 A
Maximum chain speed	22.9m/min 75.1 ft/min	22.5m/min 73.8 ft/min	22.6m/min 74.1 ft/min
Maximum chain speed @ working load	18.6m/min 61 ft/min	15.2m/min 49.9 ft/min	16.8m/min 55.1 ft/min
Weight without drum	9Kg 19 lb	9.5Kg 20.9 lb	9.5Kg 20.9 lb	9.5Kg 20.9 lb
Weight with drum	10.7Kg 23.6 lb	10.7Kg 23.6 lb	10.7Kg 23.6 lb
