Quick Prince DP2L 770 Windlass - 1/4" 350W 12V

£1,065.95 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Vertical windlasses
Stainless steel Aisi 316 base and BHC.
With and without drum
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Supplied with pressure lever
Inspection lid
Motor watertight to IP66
BHC material gearbox

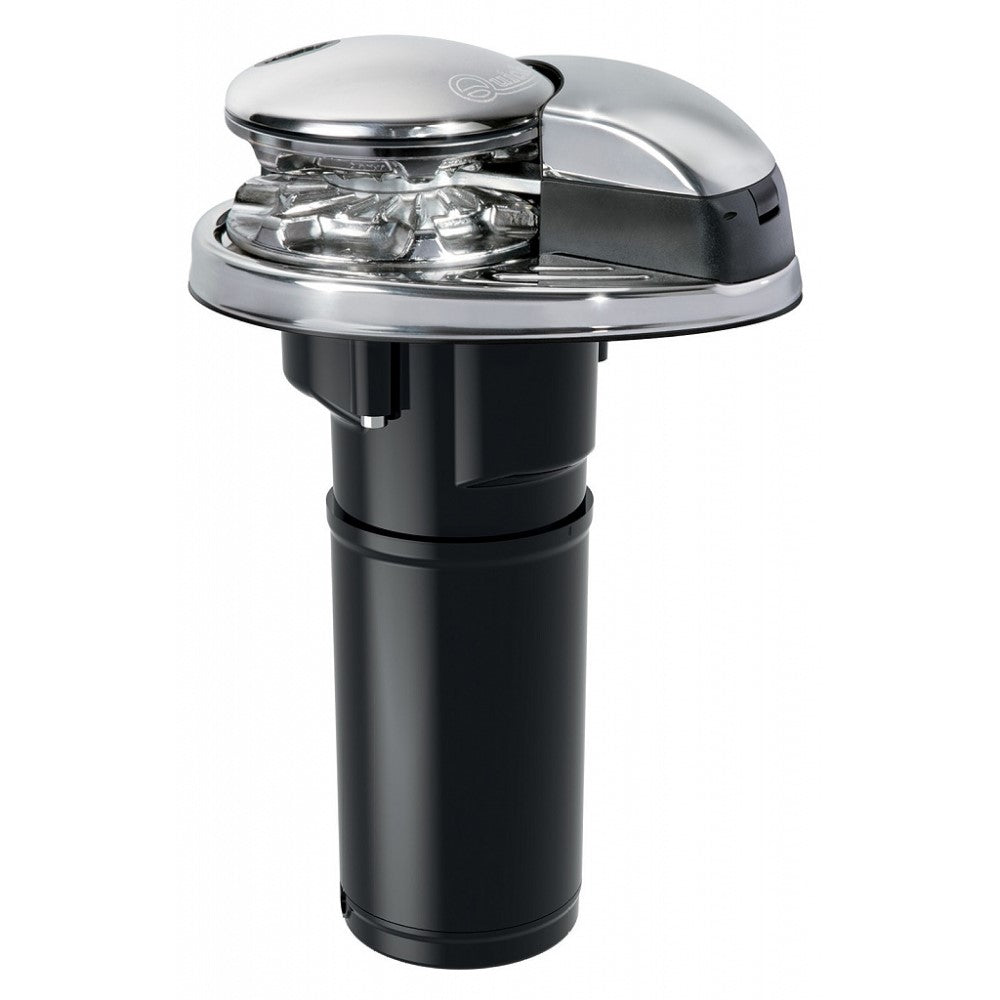

The DP2L is a compact vertical application windlass for smaller boats with limited deck space. Powered by a watertight IP66 350W Motor there are Gypsy options for 6mm or 7mm (1/4") chain.

Gypsy Options

Gypsy	6mm		7mm (1/4")
Chain	6mm DIN 766	6mm ISO	7mm DIN 766	7mm ISO	1/4" G4	1/4" BBB
Rope	12.7mm (1/2")		12.7mm (1/2")		12.7mm (1/2")

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.

Specifications

Standard Version	Prince DP2L 770
Motor Power	350W
Motor Supply Voltage	12V
Maximum Pull	350Kg 771 lb
Maximum working load	200Kg 441 lb
Working load	80Kg 176 lb
Current absorption @ working load	30 A
Maximum chain speed	17m/min 55 ft/min
Maximum chain speed @ working load	15m/min 49 ft/min
Weight	6.5Kg 143 lb
