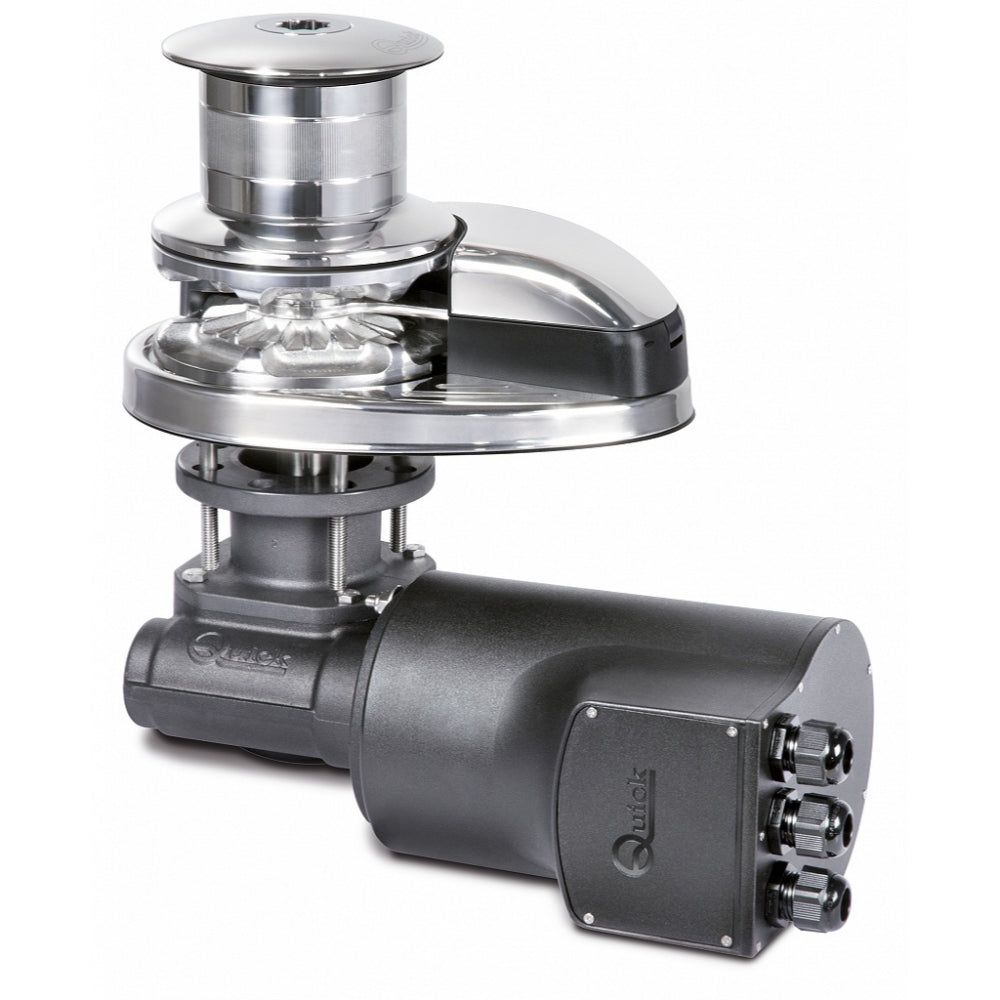

Quick Prince DP3 1512D Windlass - 8mm (5/16") 1500W 12V With Drum

£1,903.21 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Vertical windlasses
Stainless steel Aisi 316 base and anodized aluminium in hard oxide
With and without drum
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Supplied with pressure lever
Inspection lid
Motor watertight to IP67
Anodized aluminium gearbox (1500W) / Technopolymer gearbox (700W/1000W)

The Prince DP3 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor anodized aluminum gearbox and inspection lid. This unit is sold complete with the windlass solenoid unit clutch handle and mounting hardware.

Gypsy Options

Gypsy	8mm (5/16")				10mm (3/8")
Chain	8mm DIN 766	8mm ISO	5/16" G4	5/16" BBB	10mm ISO	3/8" G4
Rope	12.7mm (1/2") - 14.2mm (9/16") - 15.8mm (5/8")				15.8mm (5/8")

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.

Specifications

Standard Version	Prince DP3 P 700/700D		Prince DP3 P 1000/1000D		Prince DP3 1500/1500D
Motor Power	700W		1000W		1500W
Motor Supply Voltage	12V	24V	12V	24V	12V	24V
Maximum Pull	850Kg 1874 lb	850Kg 1874 lb	1000Kg 2204 lb	1000Kg 2204 lb	1100Kg 2425 lb	1100Kg 2425 lb
Maximum working load	250Kg 551 lb	300Kg 661 lb	370Kg 816 lb	450Kg 992 lb	470Kg 1036 lb	540Kg 1190 lb
Working load	80Kg 176 lb	100Kg 220 lb	120Kg 264 lb	150Kg 331 lb	160Kg 353 lb	180Kg 397 lb
Current absorption @ working load	90 A	55 A	140 A	80 A	155 A	85 A
Maximum chain speed	27.4m/min 89.9 ft/min	26.4m/min 86.6 ft/min	39.6m/min 129.2 ft/min	40.9m/min 134.2 ft/min	29.2m/min 95.8 ft/min	29.7m/min 97.4 ft/min
Maximum chain speed @ working load	14.4m/min 47.2 ft/min	14.8m/min 48.6 ft/min	20.4m/min 66.9 ft/min	21.4m/min 70.2 ft/min	16.3m/min 53.5 ft/min	19m/min 62.3 ft/min
Weight without drum	16.4Kg 36 lb		17.4Kg 38 lb		21.3Kg 47 lb
Weight with drum	18.4Kg 40 lb		19.4Kg 42 lb		23.2Kg 51.2 lb
