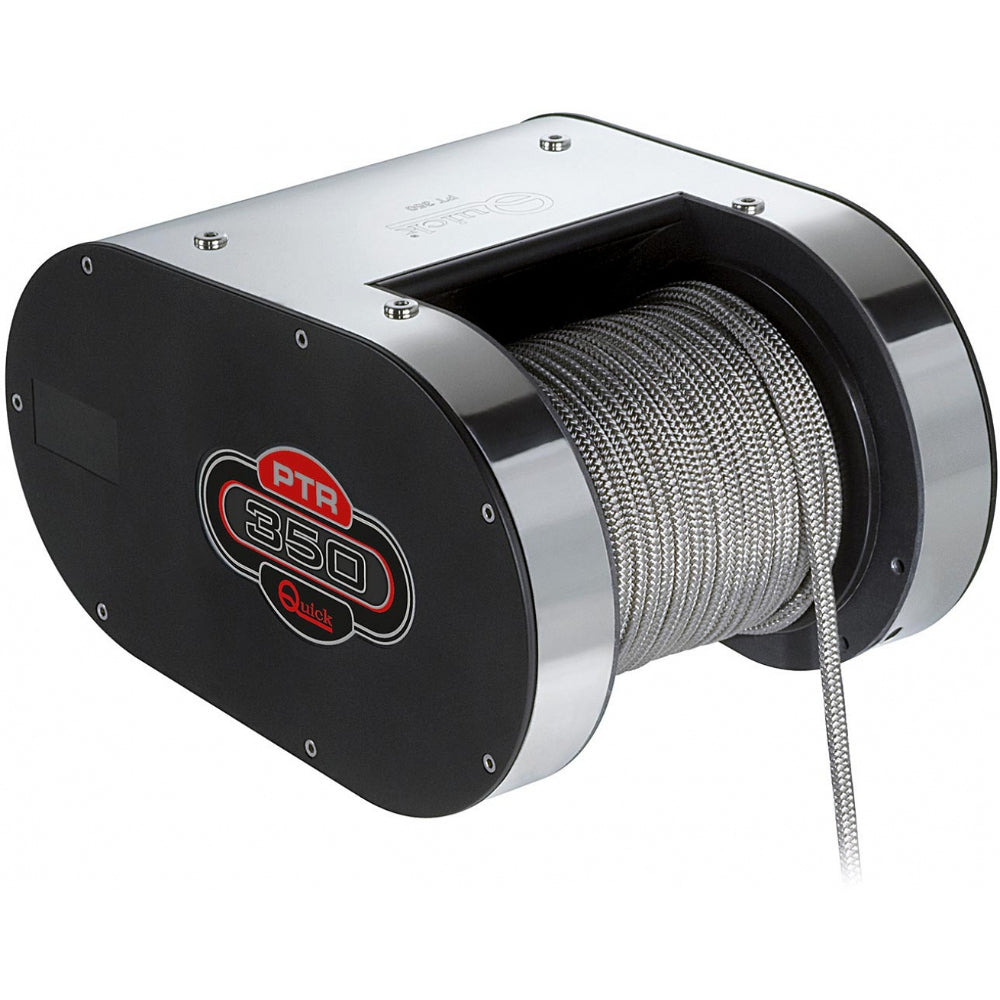

Quick PT 350 R Rope-Roll Capstan - 150W 12V

£1,357.68 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Windlasses with rope-roll
AISI 316 stainless steel and anodized aluminium
IP66 watertight motor

The models of the PT series are special electrical capstans designed to weigh anchor onboard of pontoon or boats with a little space available. It can be easily installed on the deck. PT models can also be used as fishing capstans or to lift the tender onboard of yachts. The roller can retrieve 6 mm rope up to 30 meters long.

Specifications

Standard Version	PTR 350	PTR 700	PTR 1000
Motor Power	150W	250W	250W
Motor Supply Voltage	12V	12V	24V
Maximum Pull	260Kg 573 lb	600Kg 1323 lb	750Kg 1653 lb
Maximum working load	100Kg 220 lb	220Kg 485 lb	250Kg 551 lb
Working load	40Kg 88 lb	80Kg 176 lb	100Kg 220 lb
Current absorption @ working load	12 A	23 A	15 A
Maximum chain speed	20.8m/min 68.2 ft/min	20.8m/min 68.2 ft/min	21.5m/min 70.5 ft/min
Maximum chain speed @ working load	19.3m/min 63.3 ft/min	18.1m/min 59.4 ft/min	18.3m/min 60 ft/min
Weight	10Kg 22 lb	10.2Kg 22.5 lb	10.2Kg 22.5 lb
