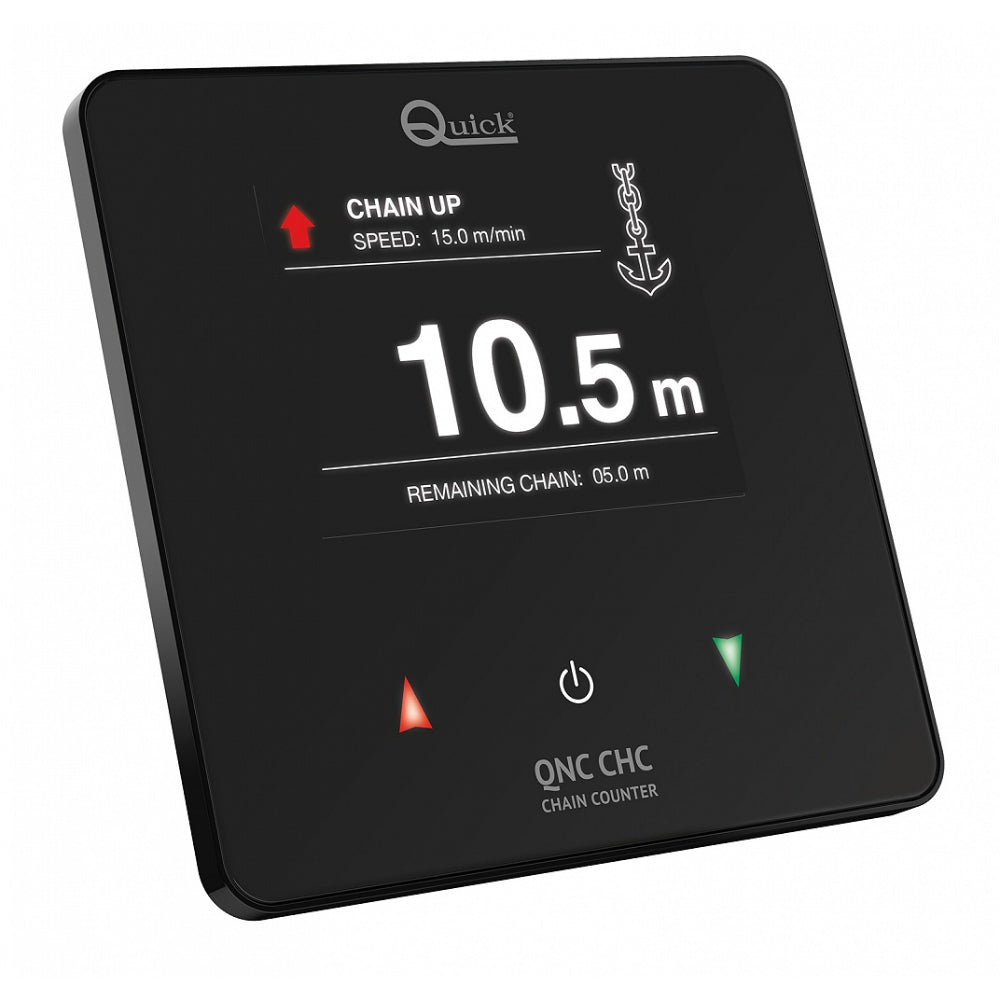

Quick QNC CHC Flush Mount Chain Counter With Touchscreen Display

• Supply Voltage: 12 / 24V DC
• Idle Current: 160mA
• Operating Temperature: -20°C - 70°C (-4°F - 158°F)
• Degree of protection: IP67
• Weight: 270g

The QNC CHC is a complete an reliable tool to remotely operate the windlass and check the length of the lowered chain by means of the colour graphic display. The panel surface is completely black tempered glass and has capacitive touch keys.

General characteristics

• Automatic descent function
• Up alarm function
• Anchor weighing function in case of sensor failure.
• Windlass management with auto free fall.
• Display of the lowered chain length in metres feet and fathom.
• Glass front
• Extremely thin profile
• Capacitive keys
• High brightness 3.5” colour graphic display
• Multilingual user interface
• Power supply 12/24 Vdc
• Functioning over a wide range of environmental temperatures
• Protection rating IP67
• CAN bus Communication Interface
