Quick

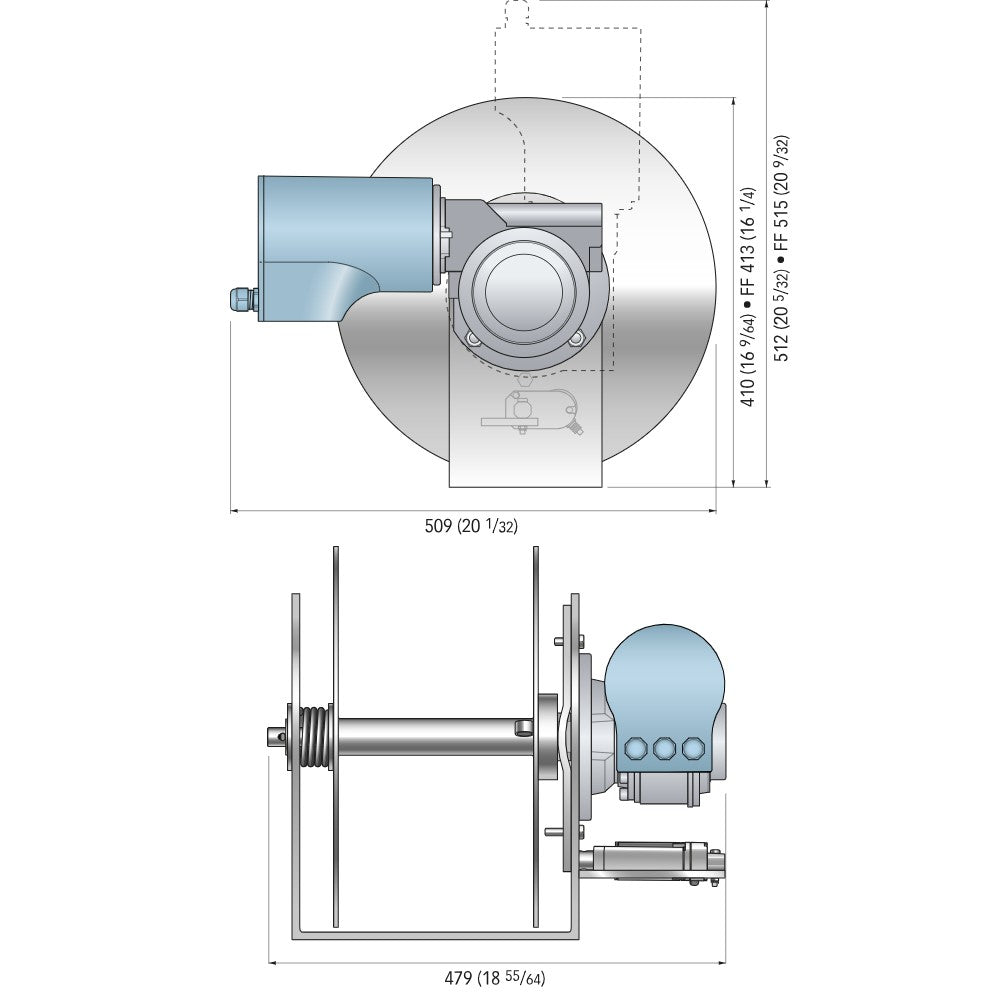

Quick SF Stressfree Capstan - Mighty 1700W With Free Fall

£5,471.34 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Capstans with drum for rope-chain
AISI 316 stainless steel base and drum
IP67 watertight motor
Anodized Aluminium gearbox

The SF Stressfree series capstan is just like having an extra crew member tending the anchor raising and lowering the anchor quickly safely and effortlessly. There is no need to tie off the anchor rope no racing down to the bow to drop or raise the anchor. No tangled rope and chain in the anchor well. No strained back or frustrated amateur crew and no rushing around the boat to move the mooring.

Simply drive the boat to the fishing spot push a button and the anchor is lowered quickly without fuss or bother It is even automatically secured. Lower and retrieve the anchor rope at a rate between 80 and 90 feet per minute. The revolutionary Stress Free Marine electric drum anchor winch is available in a range of capacities and there’s one designed just to fit into most boats.

Drum Capacities

Mini 500	75m of 8mm nylon plus 6m of 6mm shortlink chain 100m of 6 mm double braid spliced to 5m of 8mm nylon & 6m of 6mm chain
Mini Extra Wide 500	75m of 8mm nylon plus 6m of 6mm shortlink chain 100m of 6 mm double braid spliced to 5m of 8mm nylon & 6m of 6mm chain
Midi 1400	85metres of 10mm nylon & 8m of shortlink chain 110m of 8mm nylon & 8m of 8mm shortlink chain 200m of 6 mm double braid spliced to 5m of 8mm nylon & 8m of 8 mm shortlink chain
Maxi 1400	85m of 10mm nylon & 8m of 8mm shortlink chain 100metres of 8mm double braid spliced to 5m of 10mm nylon & 8m of 8mm shortlink chain
Mighty 1700	170m of 8mm nylon & 8m of 8m shortlink chain 130m of 10mm nylon & 8m of 8mm shortlink chain 100m of 12mm nylon & 8m of 8mm shortlink chain

The amount of chain can be lenghtened or shortened to meet individual needs. In these situations the amount of rope must be tailored to ensure there is a maintained clearance between the chain and the baseplate.

Specifications

Standard Version	SF MINI 500	SF MINI 500 FF	SF MINI EXTRA WIDE 500	SF MINI EXTRA WIDE 500 FF	SF MIDI 1400	SF MIDI 1400 FF	SF MAXI 1400	SF MAXI 1400 FF	SF MIGHTY 1700	SF MIGHTY 1700 FF
Motor Power	500W		500W		1400W		1400W		1700W
Motor Supply Voltage	12v		12v		12v		12v		12v
Maximum working load	195Kg 430 lb		195Kg 430 lb		250Kg 551 lb		275Kg 606 lb		350Kg 771 lb
Drum Diameter	250mm 9"27/32		250mm 9"27/32		300mm 11"13/16		300mm 11"13/16		400mm 15"3/4
Free Fall Device	No	Yes	No	Yes	No	Yes	No	Yes	No	Yes
Weight	16.5Kg 36.4 lb	18.3Kg 40.3 lb	17Kg 37.5 lb	18.8Kg 41.5 lb	22.84Kg 50.3 lb	24.8Kg 54.6 lb	34Kg 75 lb	35.4Kg 78 lb	44Kg 97 lb	44.3Kg 97.6 lb
