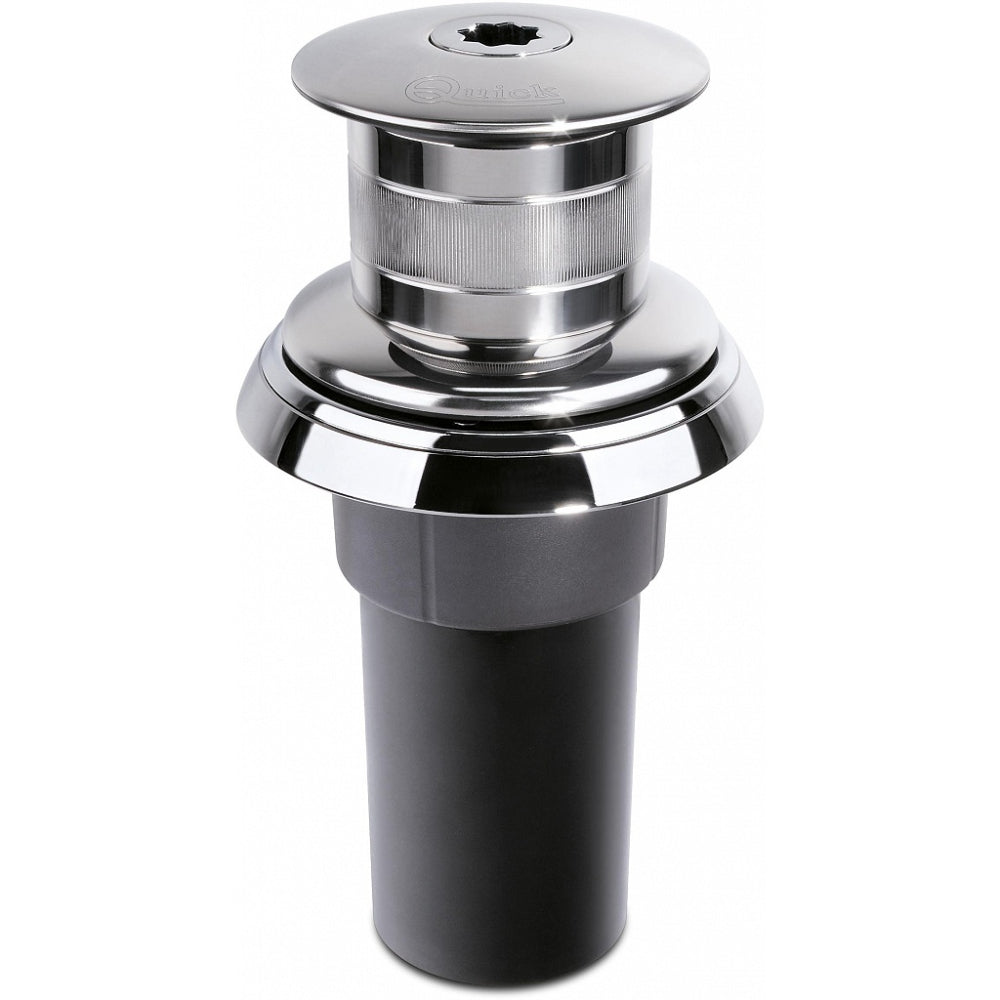

Quick Totem TM3 1000 Capstan Winch - 800W 24V

£1,295.17 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Default

Quantity

Drum Diameter: 130mm (5"1/8)
Warping Winches
AISI Stainless steel 316 base
Vertical watertight motor for easy and fast drop-in installation
Anodized aluminium gearbox

The Totem is a capstan with a vertically mounted motor below the deck with easy drop-in installation. This unit comes equipped with an IP67 watertight motor and epicyclical gearbox that provides much higher efficiency 40% compared to equivalent traditional gearboxes. The drum and bass are composed of chrome-plated bronze. This unit is sold complete with the capstan solenoid unit clutch handle mounting hardware and users manual.

Specifications

Standard Version	TM3 600	TM3 1000	TM3 1100
Motor Power	500W	800W	800W
Motor Supply Voltage	12V	12V	24V
Maximum Pull	620Kg 1367 lb	820Kg 1808 lb	820Kg 1808 lb
Maximum working load	200Kg 441 lb	290Kg 639 lb	290Kg 639 lb
Working load	65Kg 143 lb	95Kg 209 lb	95Kg 209 lb
Current absorption @ working load	40 A	80 A	40 A
Maximum chain speed	15.4m/min 50.5 ft/min	25.8m/min 84.6 ft/min	25.8m/min 84.6 ft/min
chain speed @ working load	11.9m/min 39 ft/min	16.8m/min 55.1 ft/min	16.8m/min 55.1 ft/min
Drum Diameter	130mm 5"1/8	130mm 5"1/8	130mm 5"1/8
Weight	8.1Kg 17.8 lb	8.1Kg 17.8 lb	8.1Kg 17.8 lb
