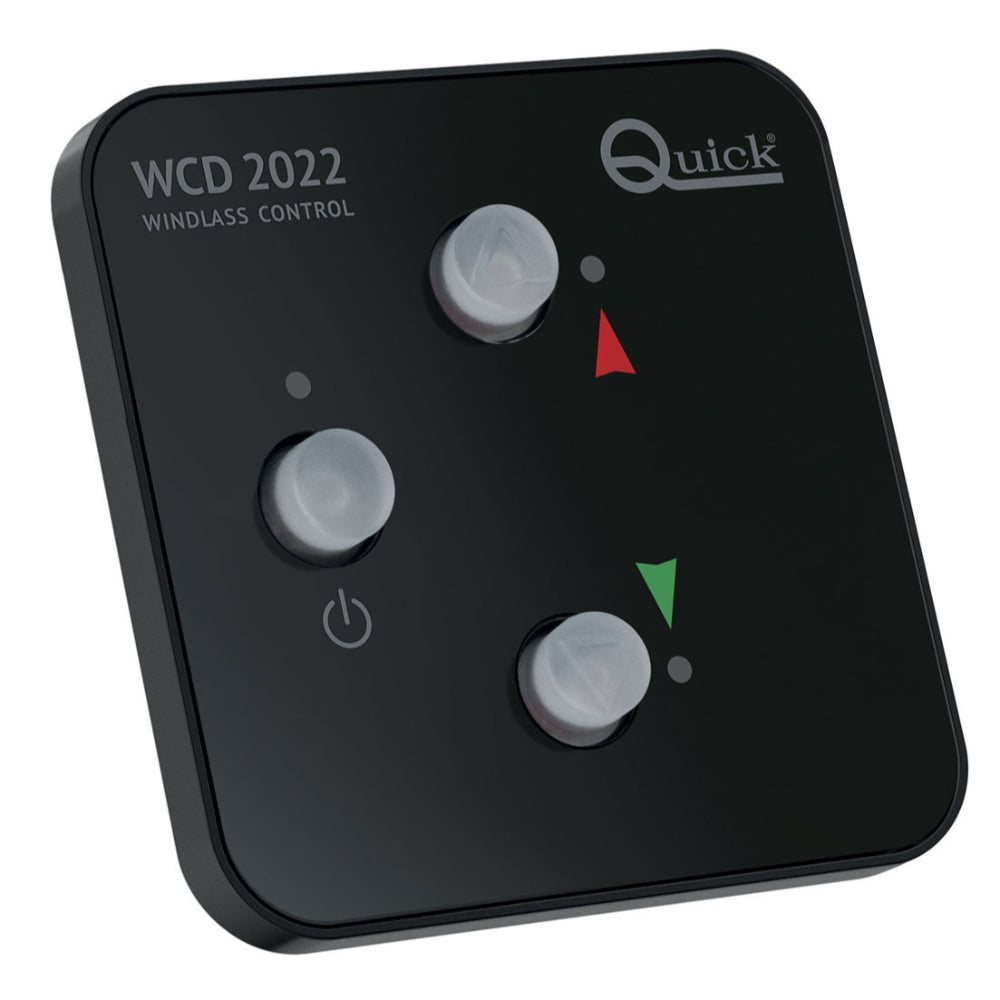

Quick WCD 2022 Windlass Up-Down Remote Control Panel

• Supply Voltage: 8 - 31V DC
• Current Capacy: Max 4A
• Current Consumption at rest: 10mA
• Operating Temperature: -20°C - 70°C
• Protection Rating: IP66
• Dimensions: 78 x 78 x 22mm (3"5/64 x 3"5/64 x 55/64")
• Weight: 80g (0.17 lb)

Windlass remote control panel for on-off system control of windlasses with a simple and intuitive user interface. Easy to install muliple controls can be added in parallel to provide multiple control stations for operatin. Features protection against reverse polarity output short circuit and interrupton of the windlass wiring. The panel also provides acoustic signals that can be deactivated if not required.
