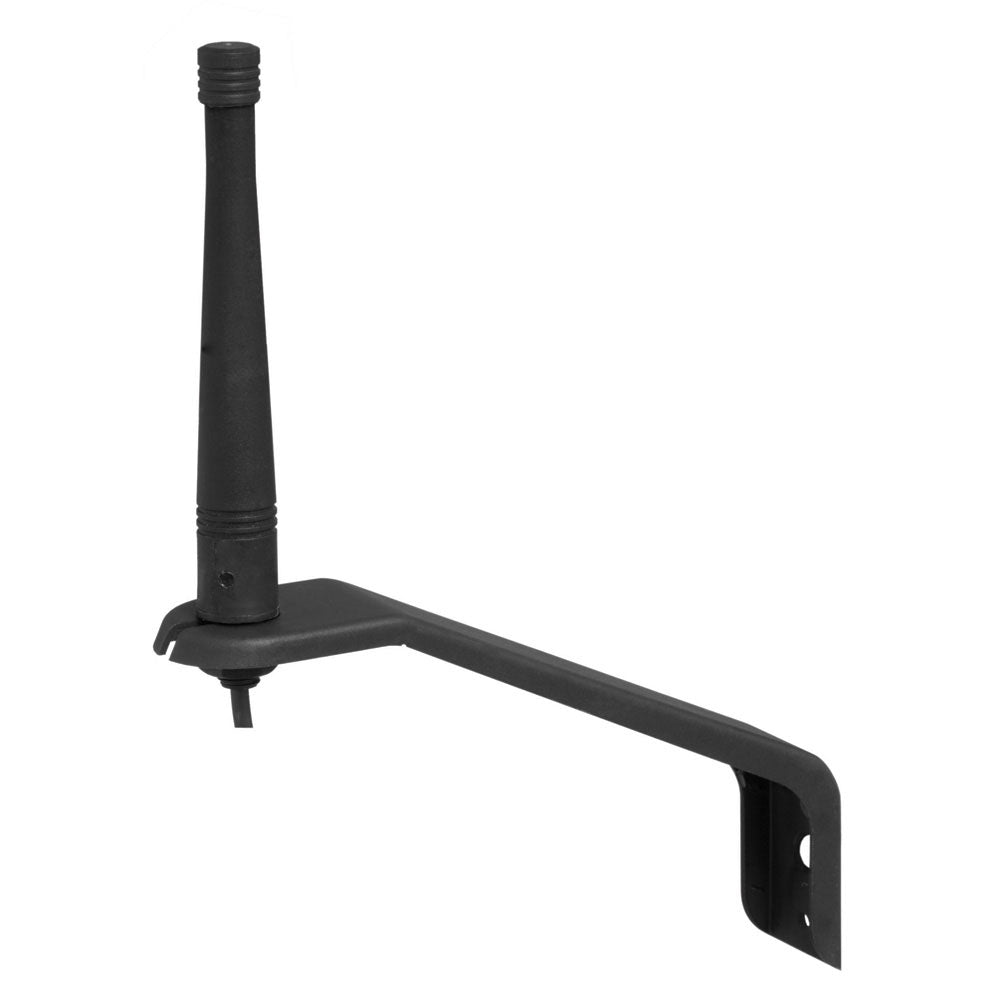

Shakespeare LDDB - GSM & GPRS Cellular Antenna - 0.15m

• Frequency: 860-960Mhz & 1750-2100Mhz
• Polarisation: Vertical
• Impedance: 50 Ohms
• VSWR: <1.5:1 at 860-960Mhz. <2:1 at 1750—2100MHz
• Gain: 3dB
• Cable: 5m RG58
• Connector: TNC Plug as standard
• Power Rating: 50W
• Element Material: Solid Brass sleeved dipole
• Length: 0.15m
• Mounting: Supplied as Standard with R/A bracket

The LDDB antenna is a Triple Band sleeved dipole tuned to cover GSM and GPRS frequencies. The antenna is a full 3dB sleeved dipole on the 860-960MHz band and have excellent responses from 1800—2200MHz.

The antenna has a rugged design that is small enough to be mounted in many positions. It is supplied as standard with a stand off bracket and 3 screws.
