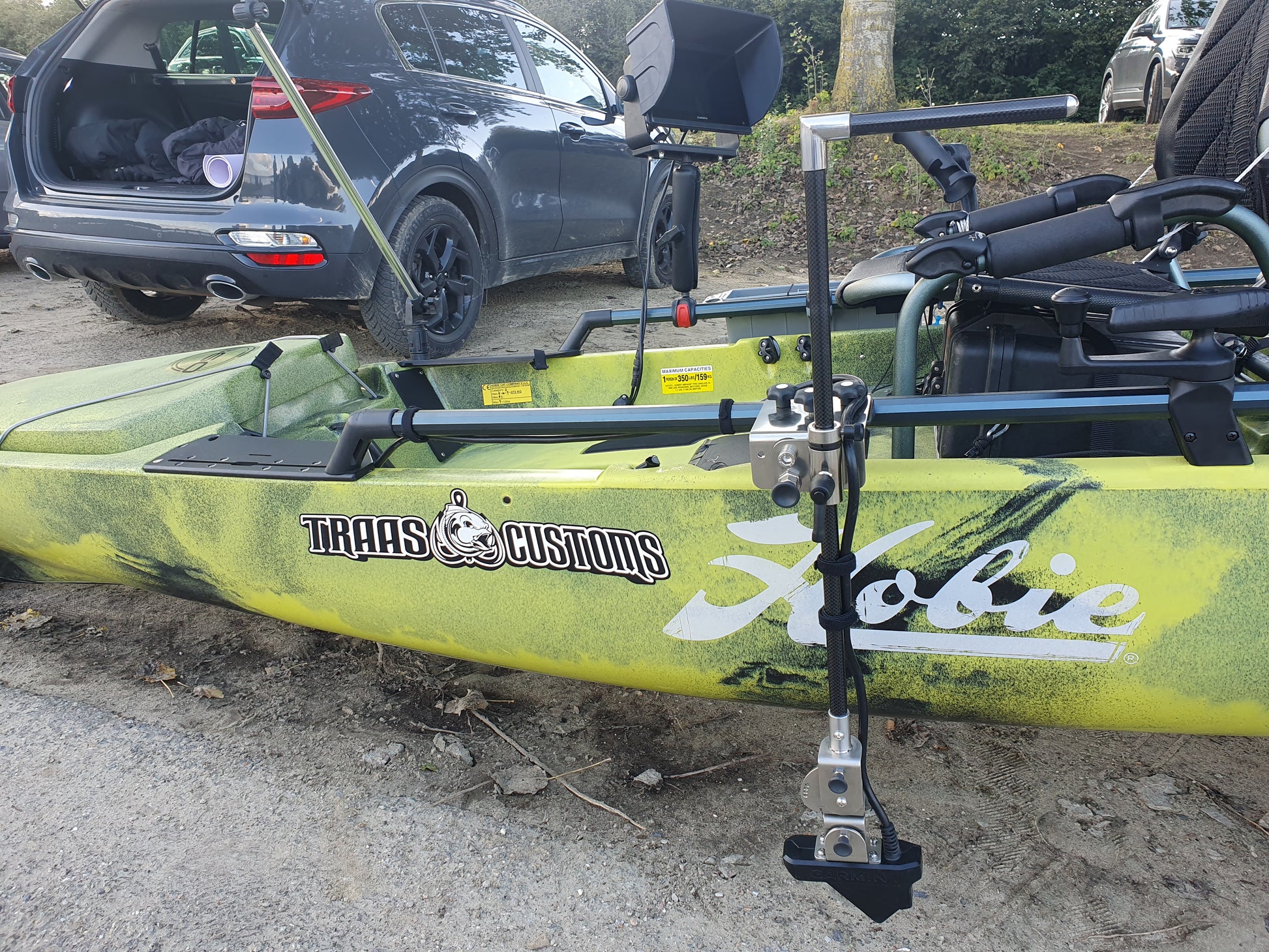

The Traascustoms Pro Angler live-transducer mount is designed for the kayak angler seeking the best combination of functionality, durability, and aesthetics.

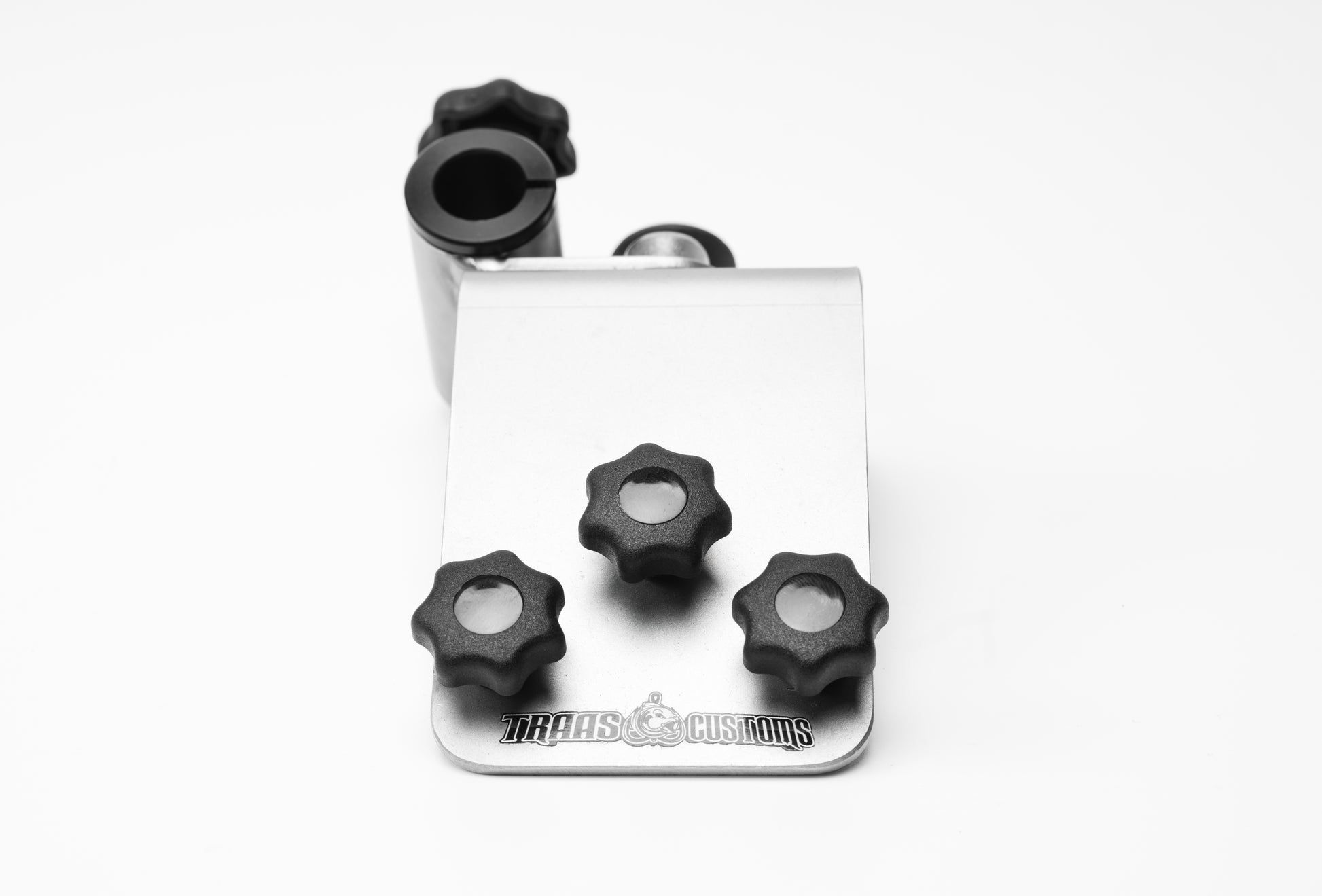

The mount consists of a marine-grade stainless steel bracket that can be mounted to a Hobie H-rail clamp. This short version is designed for the Hobie Pro Angler models.

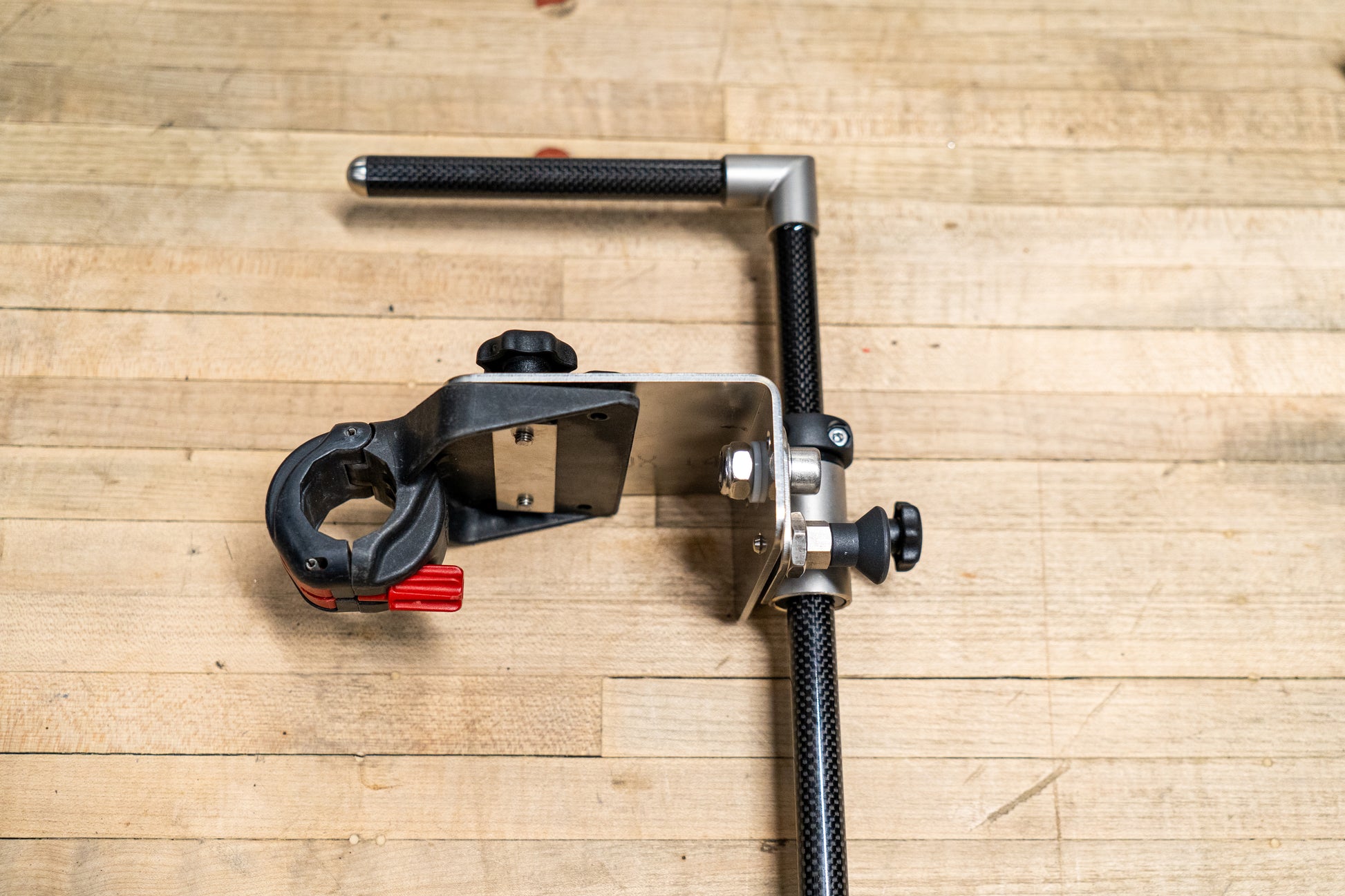

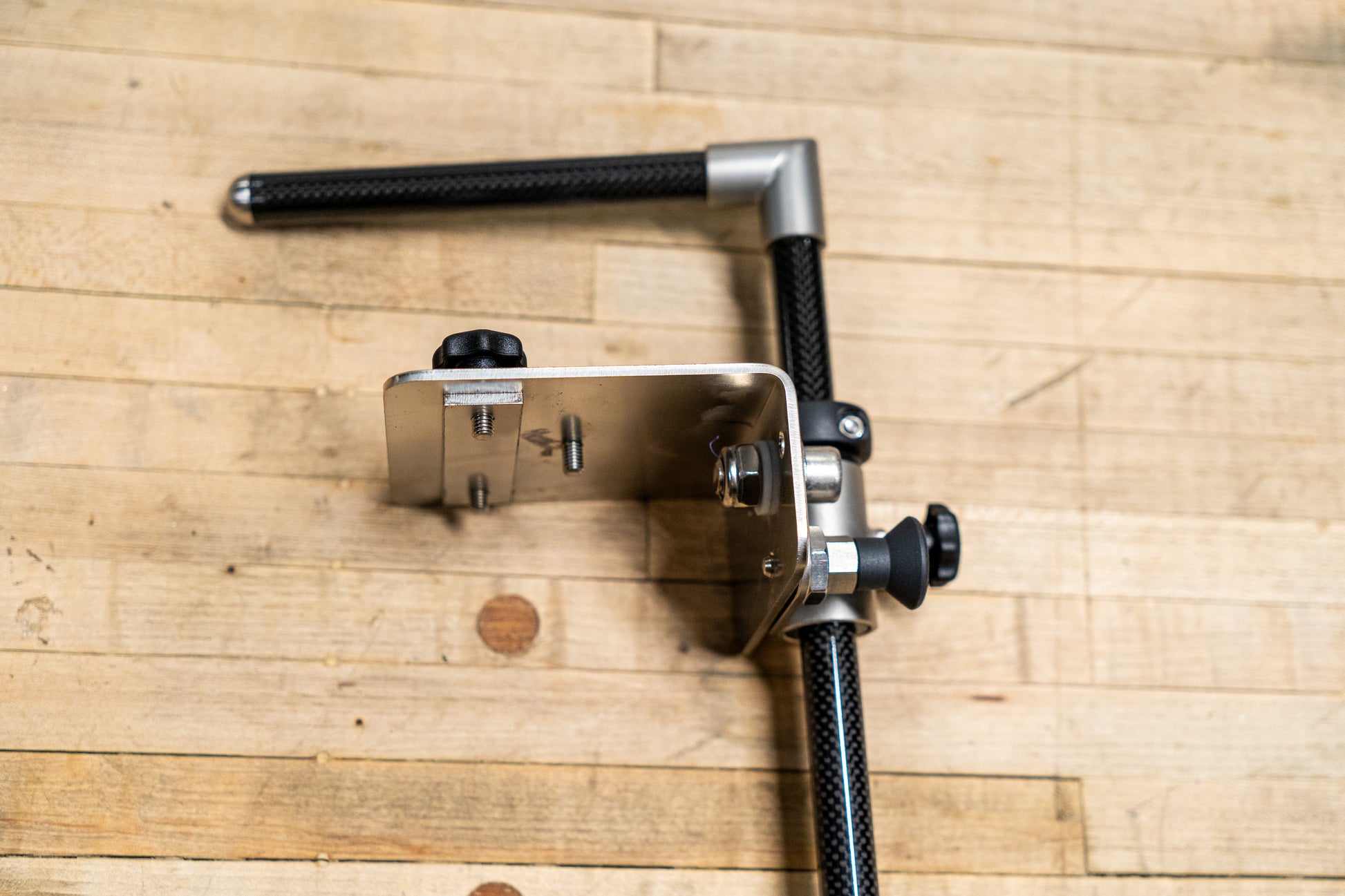

The 60-centimeter carbon fiber tube, onto which the transducer can be mounted using the included adapter, has a 15-cm handle.

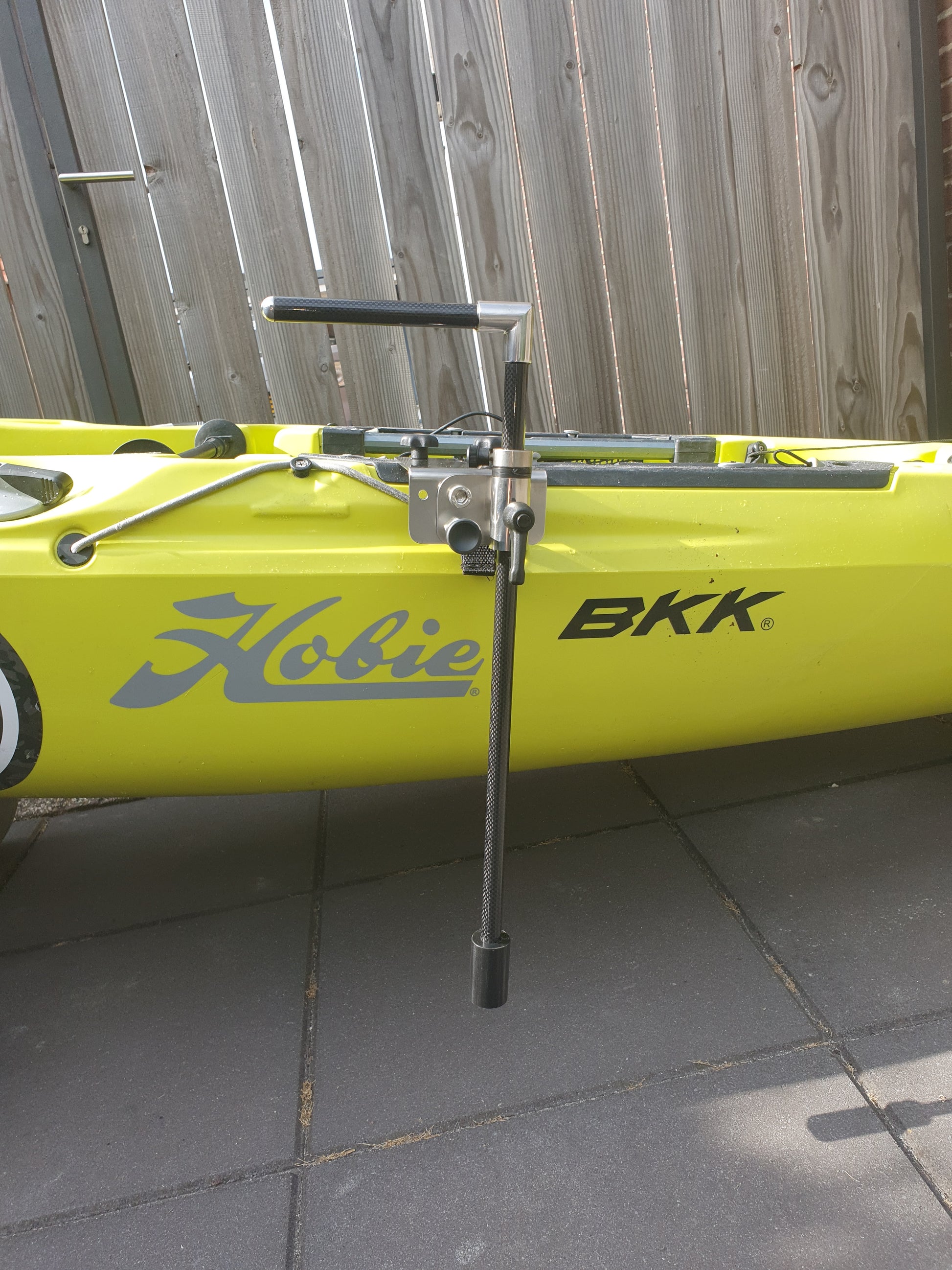

The tube can be locked in a horizontal or vertical position using a spring-loaded locking pin, allowing the transducer to be quickly retrieved from the water.
A collar is fitted to the tube to adjust the transducer to the desired depth.
The pressure on the clamping sleeve for rotating the transducer is adjustable with a star knob.
This Traascustoms live-transducer mount is designed for the kayak angler who demands only the best and will be a real eye-catcher on your kayak!
CAN BE FITTED TO H-RAIL OR TRACKS.
Specifications: Traascustoms Pro Angler Mount
Base unit consisting of:
Seawater-resistant stainless steel components (excluding locking pin and star knobs)
Bracket dimensions: 100x100x50 mm
Mountable on a Hobie H-rail mounting plate

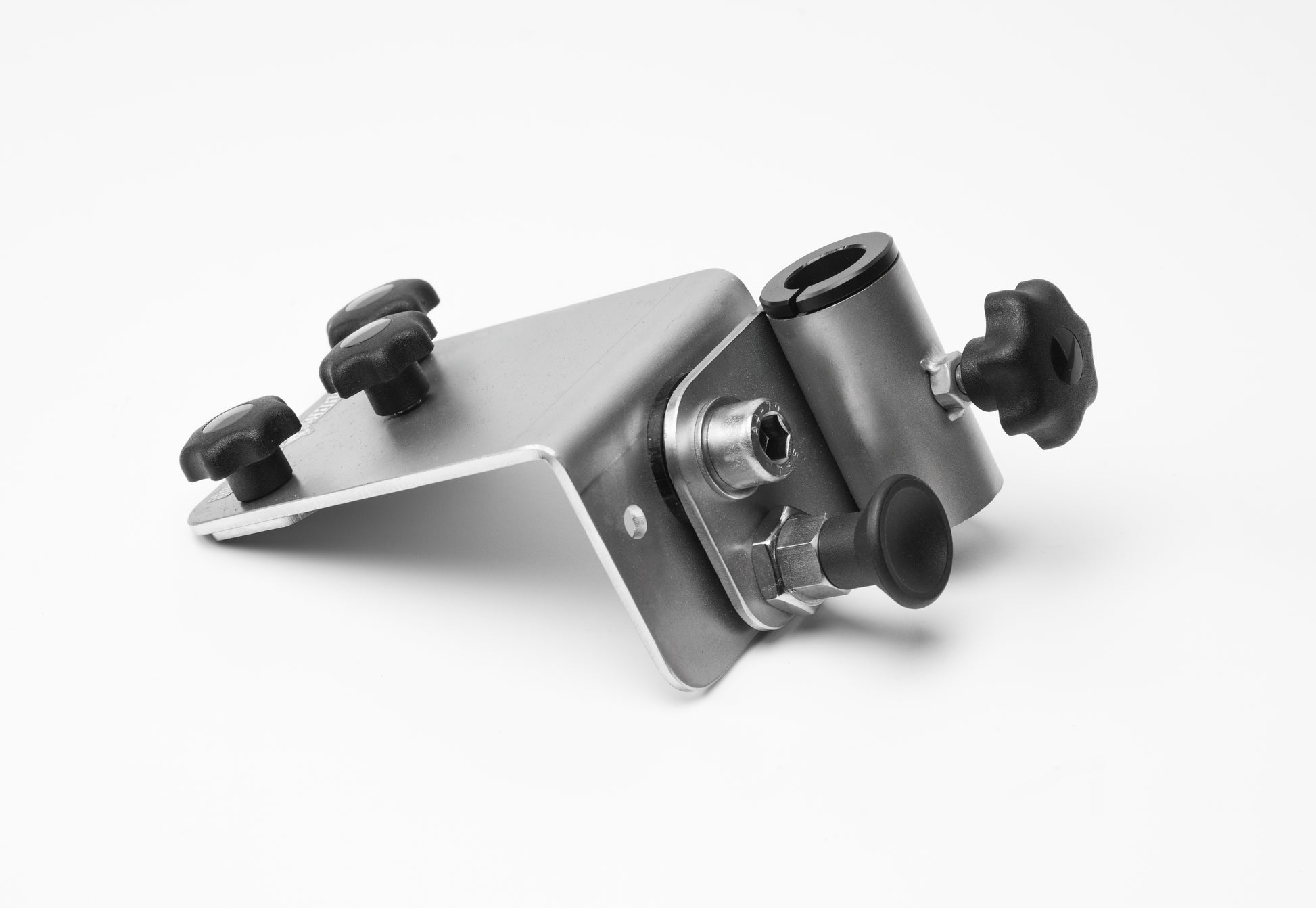

Pivoting 90 degrees in both directions with a spring-loaded locking pin
Plastic clamping sleeve adjustable with a star knob
60-centimeter-long carbon tube (16x1 mm) with a 15cm handle and stainless steel decorative cap
Plastic adapter (50x30 mm) suitable for Garmin/Lowrance transducer bracket
Plastic adjustment ring for depth adjustment
Weight: approx. 750 grams
Hobie H-rail mounting plate not included.
