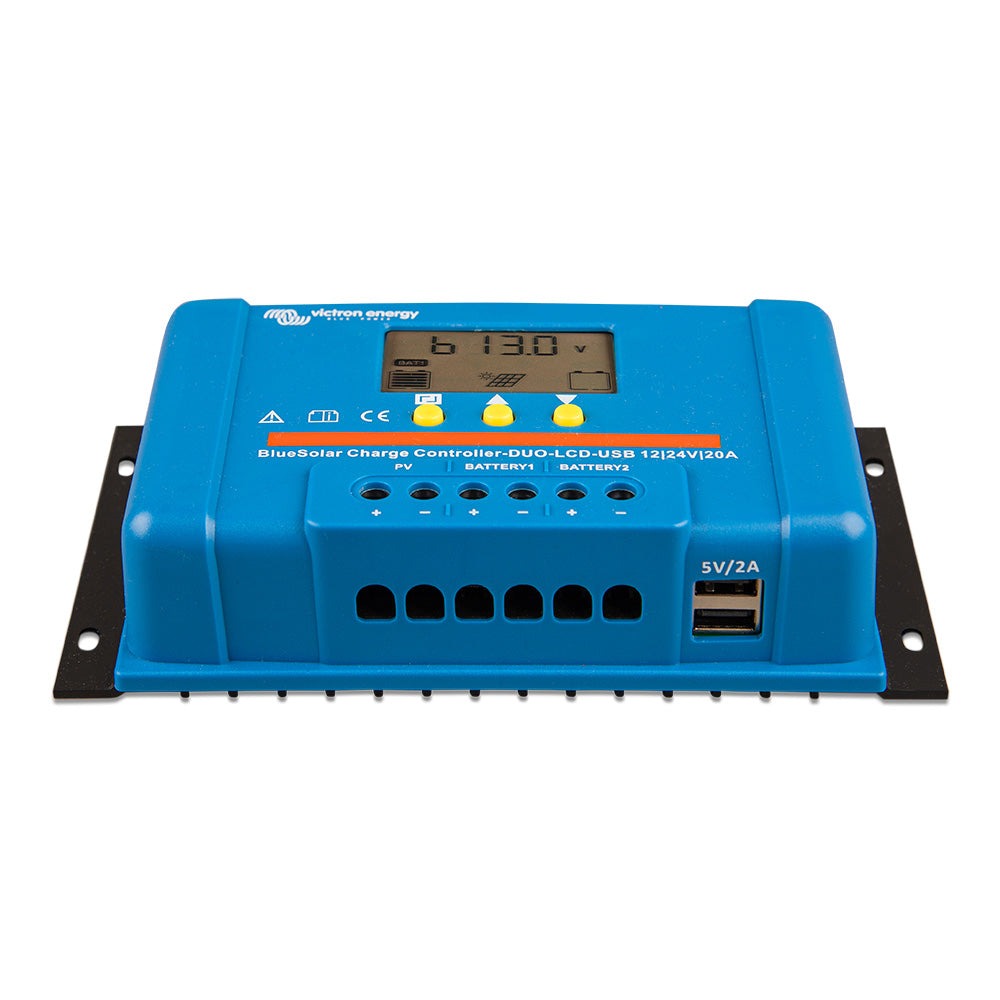

Victron BlueSolar Charge Controller PWM DUO LCD/USB 12/24V-20A

• Voltage: 12/24V
• Rated Charge Current: 20A
• Protection Category: IP20
• Bluetooth Enabled: No
• Dimensions: 101.5 x 184.0 x 47.1mm
• Weight: 0.3Kg
• Warranty: 5 Years

The BlueSolar PWM DUO 12V|24V|20A LCD-USB series uses Pulse Width Modulation (PWM) charge voltage control combined with a multistage charge control algorithm. This leads to superior charging and enhanced battery performance. The filtered PWM power control system uses highly efficient and reliable power MOSFET transistors.

Features

• Liquid Crystal Display
• Two 5 Volt USB outputs
• Lighting control function fully programmable
• Three stage battery charging (bulk absorption float) fully programmable
• Load output with low voltage and manual disconnect (programmable)
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery
• Charges two separate batteries
• Programmable charge current ratio
• External Temperature sensor
