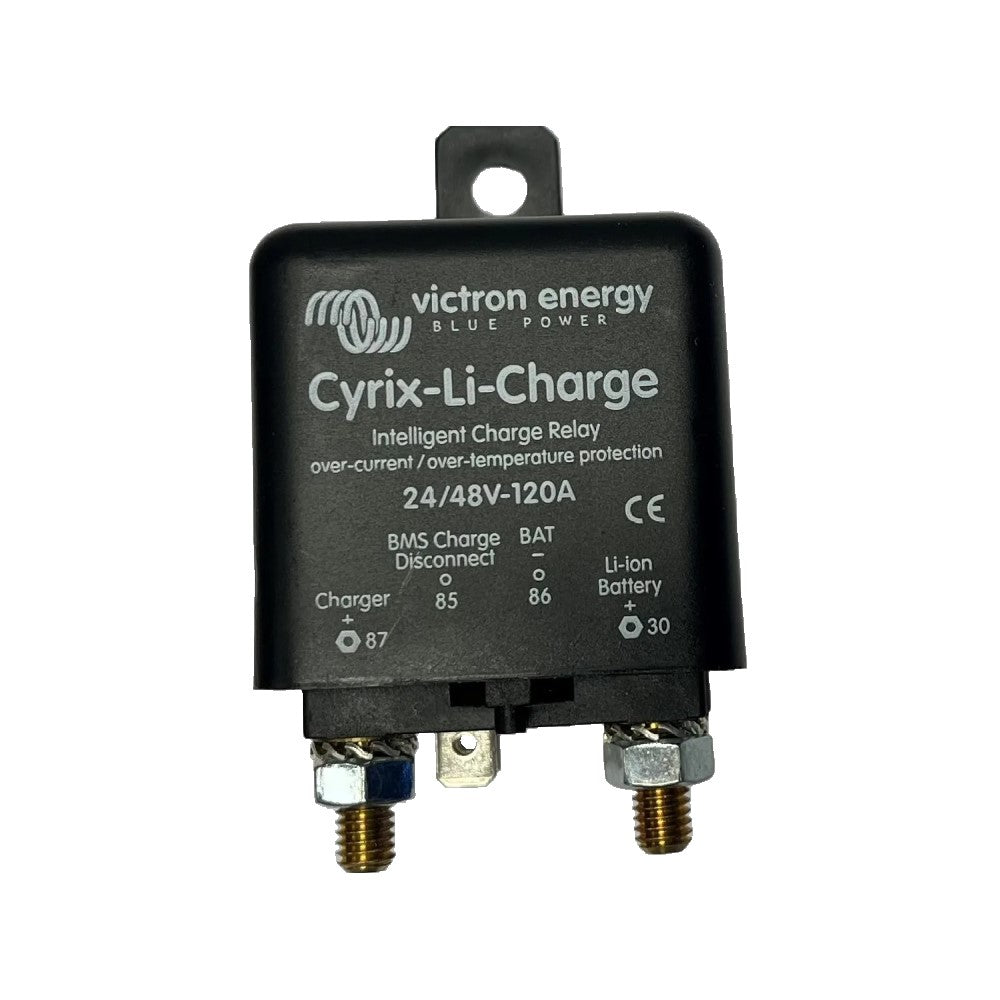

Victron Cyrix-Li-Charge Intelligent Charge Relay 24/48V - 120A

• Voltage: 24/48V
• Continuous current & Breaking capacity at 12V or 24V: 120A
• Current Consumption When Open: 4 mA
• Protection Category: IP54
• Dimensions: 46 x 46 x 80mm
• Weight: 0.11Kg
• Warranty: 5 Years

The Cyrix-Li-Charge will connect a battery charger with 3 seconds delay:

• if the charge disconnect output of the VE.Bus BMS is high and
• if it senses 13.0 V (resp. 26.0 V) or more on its battery charger connection terminal and
• if it senses 2 V or more on its battery terminal
  (the Cyrix will remain open if not connect to the battery)

The Cyrix-Li-Charge will disengage immediately whenever its control input becomes free floating signalling cell over voltage or cell over temperature.

In general a cell over voltage alarm will reset shortly after charging has been stopped. The Cyrix will then reconnect the charger after a delay 3 seconds

When the Cyrix-Li-Charge is engaged (charger connected to battery) it will disengage after 1 hour to check if the charger is still enabled..

If after the Cyrix has disengaged the output of the battery charger immediately increases to 13.0 V or more the Cyrix will reengage with a 3 seconds delay.

Note: In case of zero discharge current or a small discharge current the Cyrix will not disengage shortly after the charger has been switched off and/or disconnected because battery voltage will remain higher than 13.5 V.
