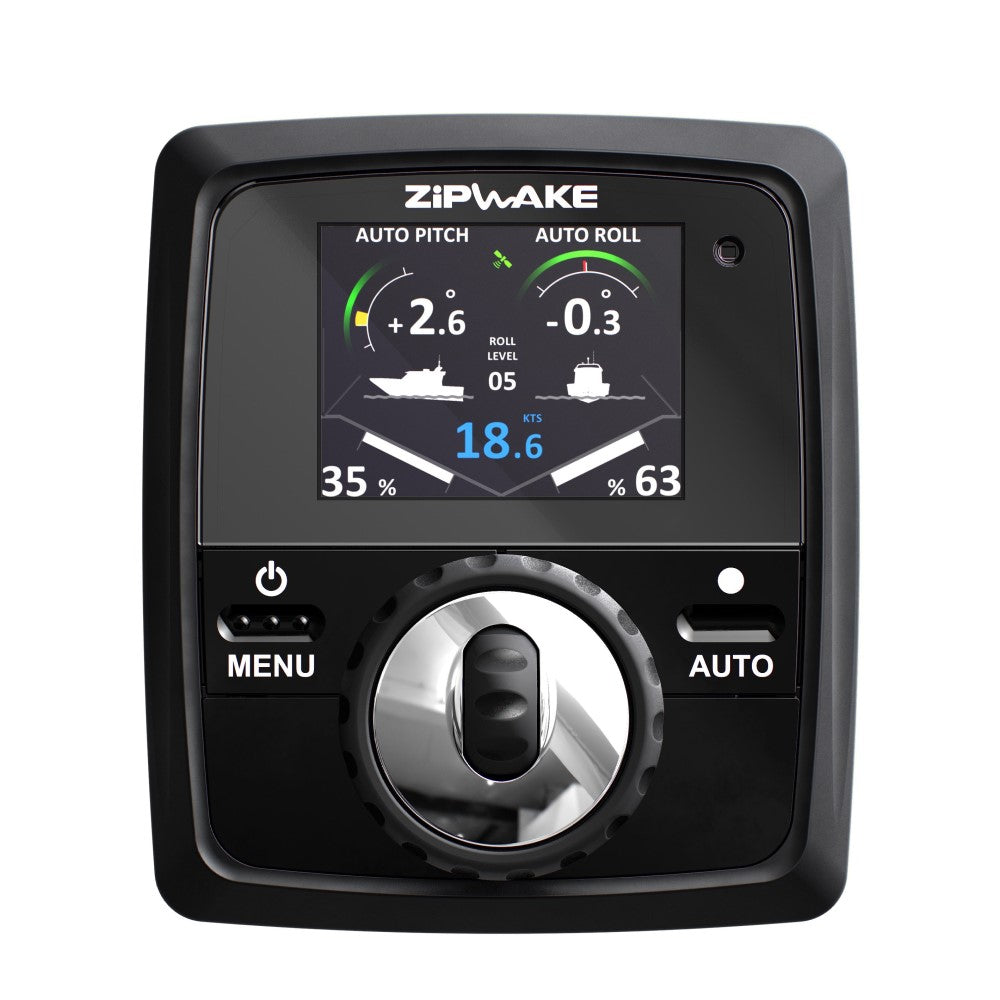

Zipwake Series S Control Panel with 7m Cable

• Display: 2.4'' 320 X 240 Pixels TFT Double-Sided Anti-Reflection coated window
• Internal Sensors: 5 HZ GPS 3D Gyro 3D Accelerometer Ambient Light
• Supply Voltage: 12 - 32 V DC
• Power Consumption: 10W Max
• Operating Temperature: -20° TO +85°C (-4° TO +185°F)
• Storage Temperature: -40° TO +90°C (-40° TO +194°F)
• Waterproof Rating: IP67 Front / IP64 Back
• Compass Safe Distance: 0.5 M (1.7 FT)
• Compliance: CE FCC
• Weight: 0.22 Kg (0.49 lbs)

The panel's two unique control wheels provide easy quick and intuitive manual control of running trim heel or heading. However the system normally operates in automatic control mode which is enabled by a single press on the AUTO button. In this mode the built-in high-frequency GPS 3D gyro sensors and robust motion controller automatically ensure dynamic elimination of uncomfortable and dangerous boat pitch and roll.

Push The Auto Button And Go

The system provides continuous feedback of boat speed pitch and roll angle as well as the interceptors ÃŒ positions on a 2.4" sunlight-readable color display.
